Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11787438 Compressor Baseplate   (Replaces: W11543386) Appelez-nous -
2 3400524 Screw   (Replaces: W10142287) Special Order $ 13.28

3 W11787346 Water Tray   (Replaces: W11678106) Appelez-nous -
4 W11678963 Grommet, Compressor   (Replaces: W10806346) Special Order $ 8.51

5 W11787355 Condenser Assembly   (Replaces: W11668494) Appelez-nous -
6 W11787358 Tube Assembly   (Replaces: W11614556) Appelez-nous -
7 W11803377 Compressor   (Replaces: W11754926) In-Stock Immediately $ 304.42

8 W11787365 Condenser Fan Assembly   (Replaces: W11613932) Special Order $ 95.85

9 W11787845 Precooler Assembly   (Replaces: W11610529) Appelez-nous -
10 W11787366 Emi Filter   (Replaces: W11670949) Appelez-nous -
11 W11787385 Drain Tube Extension   (Replaces: W11559668) Special Order $ 62.27

12 W11553819 Sound Insulation   (Replaces: 2215468) In-Stock Immediately $ 14.77

13 W10774846 Roller Special Order $ 90.76

14 W11807406 Front Shroud   (Replaces: W11613272) Appelez-nous -
15 W11823809 Inverter Connector Cover   (Replaces: W11682571) Appelez-nous -
16 W11807409 Baseplate Gasket   (Replaces: W11642492) Appelez-nous -
17 W11787966 Roller Cover   (Replaces: W11613273) Appelez-nous -
18 W11785637 Wire Assembly   (Replaces: W11595064) Appelez-nous -
19 W11807413 Rear Shroud   (Replaces: W11611636) Appelez-nous -
20 W11233642 Clip   (Replaces: 2223913) Appelez-nous -
21 W11787357 Inverter Box Assembly   (Replaces: W11754928) Special Order $ 342.23

22 W11109499 Drier (service Drier Without Dye)   (Replaces: W10805035) In-Stock Immediately $ 39.12

23 W11417341 Screw Special Order $ 14.07

ARIA203FEA88A0C0545C484B4E1C20B771B Refrigerant Charge Appelez-nous -
ARID483ADB943DA550BEF12DF4015B4B90F 70 Grams (2.47 Oz) R600a Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

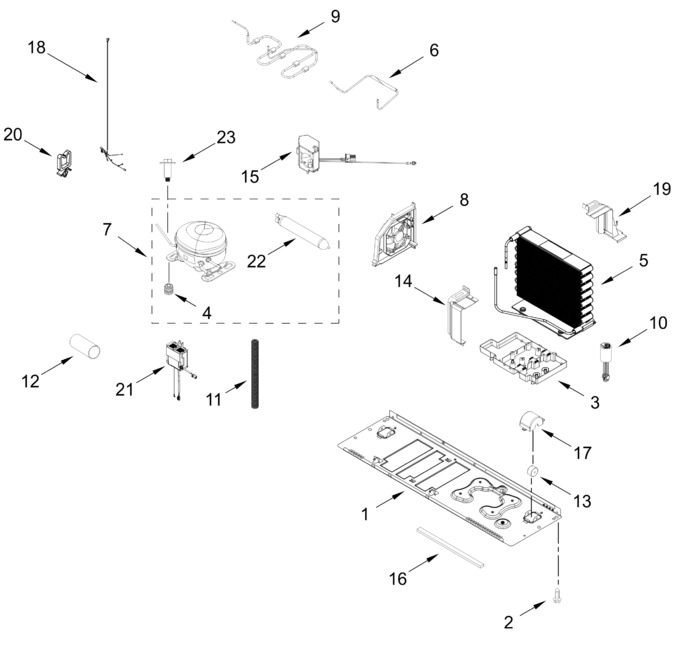

Diagram for WRMC7036RV00
