SELECT A DIAGRAM

Cabinet Parts


Dispenser Front Parts


Freezer Door Parts


Freezer Liner Parts


Icemaker And Ice Container Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Shelf Parts


Unit Parts

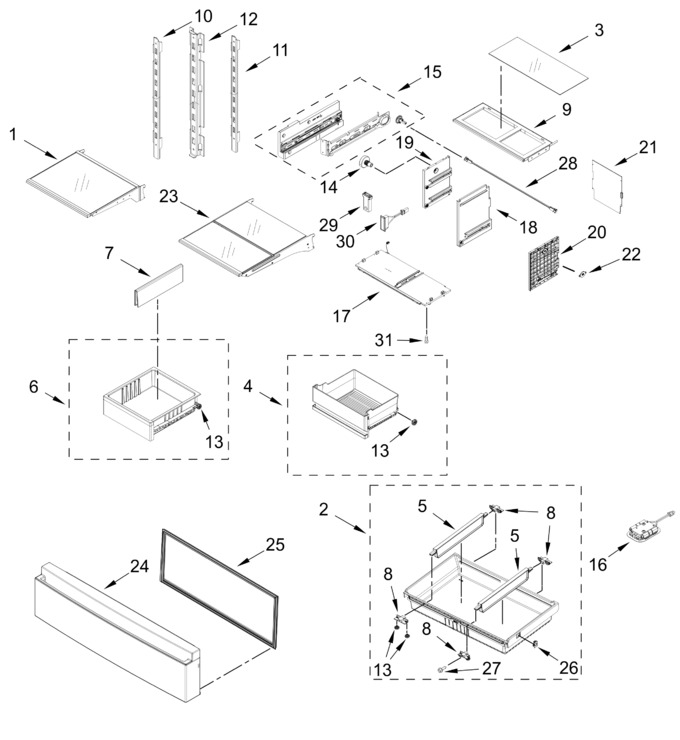

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11749293		Shelf Assembly, Stationary   (Replaces: W11611160)				$ 193.68
2	W11821492		Drawer Assembly, Pantry   (Replaces: W11579341)		Appelez-nous	-
3	W11787400		Glass Crisper Cover   (Replaces: W11664743)		Appelez-nous	-
4	W11818595		Pan Assembly, Crisper   (Replaces: W11606493)		Appelez-nous	-
5	W11821493		Divider, Drawer (pantry)   (Replaces: W11579736)		Appelez-nous	-
6	W11818566		Pan, Storage (tall)   (Replaces: W11606496)		Appelez-nous	-
7	W11787521		Pan Divider (storage)   (Replaces: W11606499)		Appelez-nous	-
8	W11821546		Slider And Roller Assembly (pantry)   (Replaces: W11604800)		Appelez-nous	-
9	W11818644		Cover Assembly, Crisper   (Replaces: W11675968)		Appelez-nous	-
10	W11821490		Shelf Ladder (white, Right Hand)   (Replaces: W11611220)		Appelez-nous	-
11	W11821489		Shelf Ladder (white, Left Hand)   (Replaces: W11611219)		Appelez-nous	-
12	W11821487		Shelf Ladder (white, Center)   (Replaces: W11611187)		Appelez-nous	-
13	W11748380		Crisper Roller Assembly   (Replaces: W11606482)		Appelez-nous	-
14	W11788021		Side Support Knob   (Replaces: W11607351)		Appelez-nous	-
15	W11830075		Pantry Adpater Assembly (left Hand)   (Replaces: W11579321)		Appelez-nous	-
16	W11818649		Led Light Module   (Replaces: W11598835)		Appelez-nous	-
17	W11821483		Crisper Base Assembly   (Replaces: W11606475)		Appelez-nous	-
18	W11826981		Center Support Assembly   (Replaces: W11810838)		Appelez-nous	-
19	W11798524		Crisper Adapter (left Hand)   (Replaces: W11606483)		Appelez-nous	-
20	W11826982		Crisper Adapter (right Hand)   (Replaces: W11810835)		Appelez-nous	-
21	W11798526		False Wall   (Replaces: W11606492)		Appelez-nous	-
22	W10840918		Side Support Flange				$ 93.47
23	W11818650		Shelf Assembly, Tuck   (Replaces: W11677370)		Appelez-nous	-
24	W11679937		Pantry Door Assembly (black Stainless, Includes Door Gasket)		Appelez-nous	-
25	W11821587		Pantry Door Gasket (grey)   (Replaces: W11608640)		Appelez-nous	-
26	W11821547		Magnet Enclosure Assembly (white)   (Replaces: W11604803)		Appelez-nous	-
27	W10847999		Screw   (Replaces: W10804977)				$ 13.47
28	W11821548		Shaft Assembly (pantry)   (Replaces: W11604593)		Appelez-nous	-
29	W11821549		Holder, Reed Switch   (Replaces: W11604590)		Appelez-nous	-
30	W11785649		Reed Switch   (Replaces: W11548358)				$ 49.08
31	W10834284		Screw (grey)		Appelez-nous	-
	W11830075		Pantry Adapter Assembly (right Hand)   (Replaces: W11579336)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
