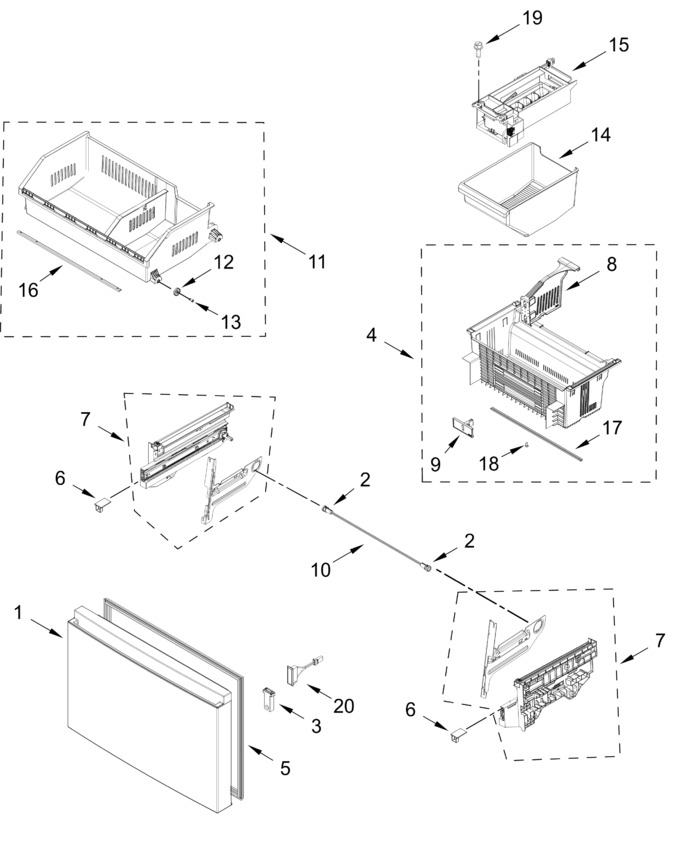

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11782009		Freezer Door Assembly (black Stainless, Includes Door Gasket)		Appelez-nous	-
2	WPW10277361		Gear Collar   (Replaces: W10277361)				$ 12.09
3	W11785696		Reed Switch Holder   (Replaces: W11658592)		Appelez-nous	-
4	W11787198		Basket Bottom Assembly   (Replaces: W11534704)		Appelez-nous	-
5	W11803538		Freezer Door Gasket (grey)   (Replaces: W11586644)		Appelez-nous	-
6	W11787995		Adapter Clip   (Replaces: W11578447)		Appelez-nous	-
7	W11830076		Adapter Assembly (left Hand)   (Replaces: W11578796)		Appelez-nous	-
8	W11787211		Bottom Basket Divider   (Replaces: W11727685)		Appelez-nous	-
9	W11787215		Slider Basket   (Replaces: W11632631)				$ 25.75
10	W11787217		Shaft Rack Assembly (bottom)   (Replaces: W11611561)		Appelez-nous	-
11	W11787306		Top Basket Assembly   (Replaces: W11629546)				$ 205.51
12	W11578839		Pan Roller   (Replaces: W10248555)				$ 14.96
13	W10839805		Roller Axle		Appelez-nous	-
14	W11787307		Ice Bucket   (Replaces: W11611610)		Appelez-nous	-
15	W11788019		Icemaker Assembly   (Replaces: W11608631)				$ 194.26
16	W11798521		Pan Support   (Replaces: W11612780)		Appelez-nous	-
17	W11798520		Pan Support   (Replaces: W11604038)		Appelez-nous	-
18	W11816126		Screw   (Replaces: W11113841)		Appelez-nous	-
19	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
20	W11785649		Reed Switch   (Replaces: W11548358)				$ 49.08
	W11830076		Adapter Assembly (right Hand)   (Replaces: W11578810)		Appelez-nous	-
