SELECT A DIAGRAM

Diagram for Cabinet Parts
Cabinet Parts

Diagram for Dispenser Front Parts
Dispenser Front Parts

Diagram for Freezer Door Parts
Freezer Door Parts

Diagram for Freezer Liner Parts
Freezer Liner Parts

Diagram for Icemaker And Ice Container Parts
Icemaker And Ice Container Parts

No Diagram Image Available
Optional Parts

Diagram for Refrigerator Door Parts
Refrigerator Door Parts

Diagram for Refrigerator Liner Parts
Refrigerator Liner Parts

Diagram for Shelf Parts
Shelf Parts

Diagram for Unit Parts
Unit Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11671934 Left Door Assembly (black Stainless, Includes Door Gasket) Appelez-nous -
2 W11672800 Right Door Assembly (black Stainless, Includes Door Gasket) Appelez-nous -
3 W11787138 Ice Door Assembly   (Replaces: W11567178) Appelez-nous -
4 W11787142 Door Stopper (black, Left Hand)   (Replaces: W11681260) Appelez-nous -
5 W11821583 Mullion Assembly (black Stainless)   (Replaces: W11555618) Appelez-nous -
6 W11787152 Door Duct Retainer   (Replaces: W11685003) Appelez-nous -
7 W11787153 Dispenser Water Tube   (Replaces: W11576674) Appelez-nous -
8 W11818659 Door Bushing (grey, Left Hand)   (Replaces: W11562283) Appelez-nous -
9 W11821586 Refrigerator Door Gasket (grey)   (Replaces: W11586647) Appelez-nous -
10 W11818567 Bin, Gallon   (Replaces: W11579028) Appelez-nous -
11 WP8281136 Screw   (Replaces: 8281136) Special Order $ 7.30

12 W11818570 Bin, Dispenser (left Hand)   (Replaces: W11579041) Appelez-nous -
13 W11818657 Door Stopper (black, Right Hand)   (Replaces: W11681256) Appelez-nous -
14 W11818573 Bin, Trivet (ice Door)   (Replaces: W11579655) Appelez-nous -
15 W11787853 Door Supply Duct Assembly   (Replaces: W11740632) Appelez-nous -
16 W11787790 Return Duct Assembly   (Replaces: W11740633) Appelez-nous -
17 W11818658 Door Bushing (grey, Right Hand)   (Replaces: W11562282) Appelez-nous -
18 W11223753 Badge   (Replaces: W10884773) In-Stock Immediately $ 87.26

19 W11793915 Reed Switch   (Replaces: W11553901) Special Order $ 63.22

20 W11787121 Retainer Plug   (Replaces: W11719970) Appelez-nous -
21 W11787124 Retainer Bracket   (Replaces: W11684787) Appelez-nous -
22 W11818599 Supply Gasket   (Replaces: W11611713) Appelez-nous -
23 W11779947 Shelf, Prep And Store Bins   (Replaces: W11699006) Appelez-nous -
24 W11728692 Bins, Prep And Store   (Replaces: W11675428) Special Order $ 100.36


    View Diagram in Separate Window     Print Icon   Print Part List

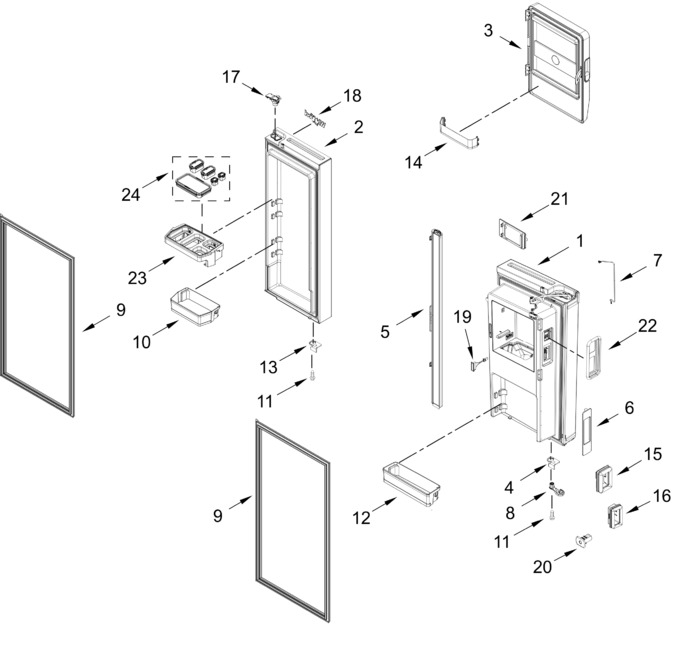

Diagram for WRMC7036RV00
