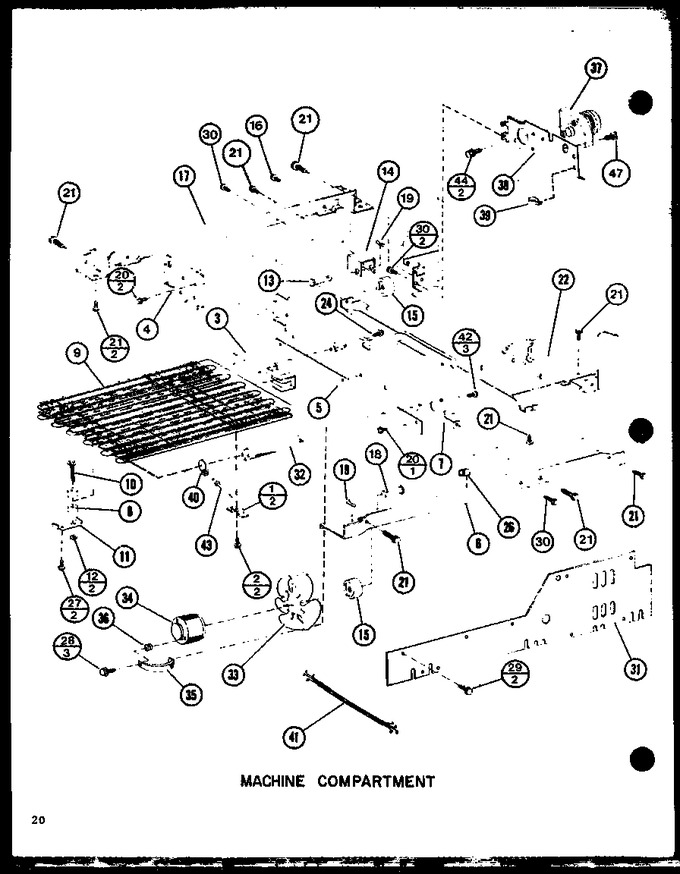

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A3054502 | Clip-cond |
|
- | |||||
| 2 | R9800670 | Kit, Screw (Replaces: M0211030) |
|
$ 9.38 | |||||
| 3 | B0544103 | Spacer |
|
- | |||||
| 5 | B8314102 | Seal-fan Shroud Q |
|
- | |||||
| 6 | C3611303 | Rail Rear |
|
- | |||||
| 7 | D7641702 | Fan Shroud |
|
- | |||||
| 8 | B8346301 | Spacer Cond. |
|
- | |||||
| 8 | B8346302 | Spacer Cond A |
|
- | |||||
| 9 | D7455202 | Condenser |
|
- | |||||
| 10 | M0257023 | Screw A |
|
- | |||||
| 10 | M0257025 | Screw A |
|
- | |||||
| 11 | A3085401 | Bracket, Support |
|
- | |||||
| 12 | M0286003 | Nut A |
|
- | |||||
| 13 | M1205302 | Rivet |
|
$ 5.85 | |||||
| 14 | C8836305 | Bracket, Roller |
|
- | |||||
| 15 | M0520102 | Roller |
|
- | |||||
| 16 | M0236230 | Screw K |
|
- | |||||
| 17 | D7003305 | Rail, Front |
|
- | |||||
| 18 | M1210001 | Pivot Pin K |
|
- | |||||
| 19 | M1200001 | Cotter Pin K |
|
- | |||||
| 20 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 7.82 | ||||
| 21 | M0233844 | Screw, T F |
|
- | |||||
| 22 | C8820412 | Weld Comp Supt Pnt |
|
- | |||||
| 24 | M0237032 | Screw |
|
- | |||||
| 26 | M0110505 | Clip-cable |
|
- | |||||
| 27 | M0241132 | Screw |
|
- | |||||
| 28 | M0220101 | Screw |
|
- | |||||
| 29 | M0241118 | Screw-sm |
|
- | |||||
| 30 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.83 | ||||
| 31 | C3655001 | Back, Mach Compt K |
|
- | |||||
| 32 | WPB2150504 | Drier (Replaces: B5715001) |
|
$ 130.46 | |||||
| 33 | B5742601 | Blade, Fan |
|
- | |||||
| 34 | 833697 | Motor, Fan (Replaces: D7584001) |
|
Immediately | $ 88.15 | ||||
| 35 | C8938501 | Bracket, Cond Motor |
|
- | |||||
| 36 | M0500107 | Grommet K |
|
- | |||||
| 37 | W10822278 | Timer (Replaces: D7004112) |
|
Immediately | $ 34.44 | ||||
| 38 | C3647902 | Timer Bracket |
|
- | |||||
| 39 | M0321401 | Tie |
|
- | |||||
| 40 | M0104002 | Clamp-drier |
|
- | |||||
| 41 | D7655301 | Harness M.c |
|
- | |||||
| 42 | M0221332 | Screw, Shoulder |
|
- | |||||
| 43 | A4539616 | Pop Rivet |
|
- | |||||
| 44 | M0230017 | Screw,tc |
|
- | |||||
| 47 | WP489399 | Screw (Replaces: M0233103) |
|
$ 6.95 |
