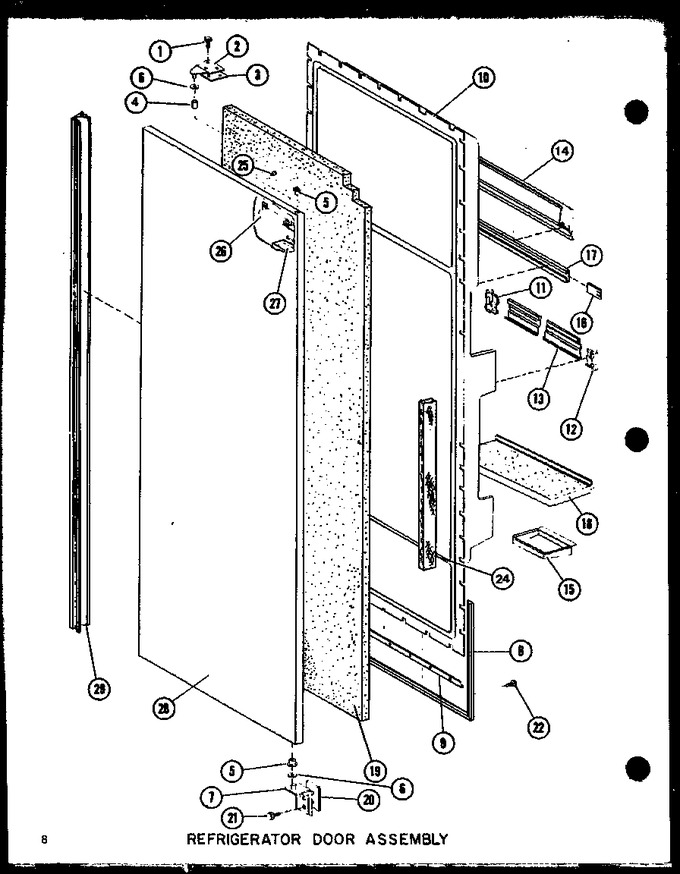

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 10.58 | |||||
| 2 | C8816602 | Hinge-right |
|
- | |||||
| 3 | A3270303 | Shim Kit |
|
- | |||||
| 4 | A3132401 | Bushing |
|
- | |||||
| 5 | C8852202 | Bearing, Hinge |
|
- | |||||
| 5 | C8852201 | Bearing-hinge |
|
- | |||||
| 6 | M0274014 | Washer K |
|
- | |||||
| 6 | M0274013 | Washer K |
|
- | |||||
| 7 | D7250103 | Hinge |
|
- | |||||
| 8 | D7092609 | Gasket |
|
- | |||||
| 9 | D7025105 | Retainer Gasket |
|
- | |||||
| 9 | D7025101 | Retainer |
|
- | |||||
| 10 | D7534401 | Inner Dr Panel Ref |
|
- | |||||
| 11 | B5631705 | Support - Cream Lh |
|
- | |||||
| 12 | B5631706 | Support- -cream Rh |
|
- | |||||
| 13 | D7415734 | Retainer Assy |
|
- | |||||
| 14 | D7511309 | Dairy Door |
|
- | |||||
| 15 | D3799802 | Butter Tray |
|
- | |||||
| 16 | B0530006 | Support K |
|
- | |||||
| 17 | B8302620 | Retainer Pkg. |
|
- | |||||
| 18 | D7429606 | Egg Tray-assy |
|
- | |||||
| 19 | B5683517 | Insulation Batt |
|
- | |||||
| 20 | A3143603 | Shim |
|
- | |||||
| 20 | A3143602 | Shim |
|
- | |||||
| 21 | M0246258 | Screw |
|
- | |||||
| 22 | M0219717 | Screw |
|
- | |||||
| 24 | 876370 | Insulation, Batt (Replaces: B0523561) |
|
$ 243.14 | |||||
| 25 | M1252001 | Screw |
|
- | |||||
| 26 | D7022901 | Door Closure |
|
- | |||||
| 27 | B5644001 | Cover |
|
- | |||||
| 28 | D7624306 | Door Ref L-t-sri19f |
|
- | |||||
| 28 | D7624302 | Door Ref W-t-sri19f |
|
- | |||||
| 29 | D7573707 | Door Handle |
|
- |
