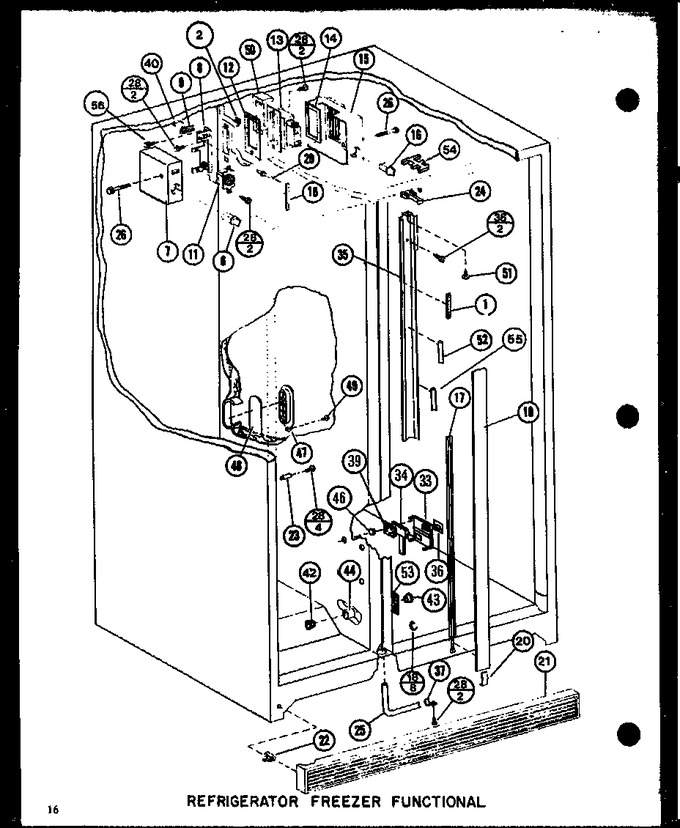

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A3030328 | Gasket (1= 1ft.) |
|
- | |||||
| 2 | M0580007 | Grommet, Screw |
|
- | |||||
| 6 | D7009801 | Knob |
|
- | |||||
| 7 | D7345504 | Escut Frz, Cont. |
|
- | |||||
| 8 | C8850502 | Bracket |
|
- | |||||
| 9 | M0342001 | Switch |
|
- | |||||
| 10 | A3030335 | Gasket-per Ft |
|
- | |||||
| 11 | C3615018 | Control |
|
- | |||||
| 12 | B8315901 | Gasket-damper |
|
- | |||||
| 13 | C3643113 | Control, Refriferator |
|
- | |||||
| 14 | A3113601 | Gasket Control |
|
- | |||||
| 15 | D7417303 | Escutcheon |
|
- | |||||
| 16 | D7009802 | Knob |
|
- | |||||
| 17 | D7747001 | Heater Mullion |
|
- | |||||
| 18 | M0113401 | Clip |
|
- | |||||
| 19 | C8810401 | Mullion Vert.white) |
|
- | |||||
| 19 | C8810405 | Mullion (almond) |
|
- | |||||
| 20 | A3120801 | Key |
|
- | |||||
| 21 | D7415413 | Grille-toe |
|
- | |||||
| 22 | M0117301 | Clip, Grille |
|
- | |||||
| 23 | A3044202 | Spacer |
|
- | |||||
| 24 | B0594201 | Support Mullion |
|
- | |||||
| 25 | B5705317 | Tubing, Plastic, From Water Ta |
|
- | |||||
| 26 | M0230926 | Screw |
|
- | |||||
| 28 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 29 | M0010202 | Rivet A |
|
- | |||||
| 35 | B5716202 | Mullion Weld |
|
- | |||||
| 36 | B5781707 | Thinplate |
|
- | |||||
| 37 | M0102804 | Clamp |
|
- | |||||
| 38 | M0211530 | Screw |
|
- | |||||
| 47 | C3588305 | Grille A |
|
- | |||||
| 48 | B8344402 | Damper Assy |
|
- | |||||
| 49 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 50 | C8860701 | Insulation-damp Cnt |
|
- | |||||
| 51 | M0233230 | Screw |
|
- | |||||
| 52 | M0275202 | Gasket ( 1=1ft. ) |
|
- | |||||
| 54 | B5608001 | Support Mullion |
|
- | |||||
| 55 | A3030344 | Gasket |
|
- | |||||
| 56 | WP489399 | Screw (Replaces: M0233103) |
|
$ 7.30 | |||||
| NI | B8344901 | Return Air Assembly |
|
- |
