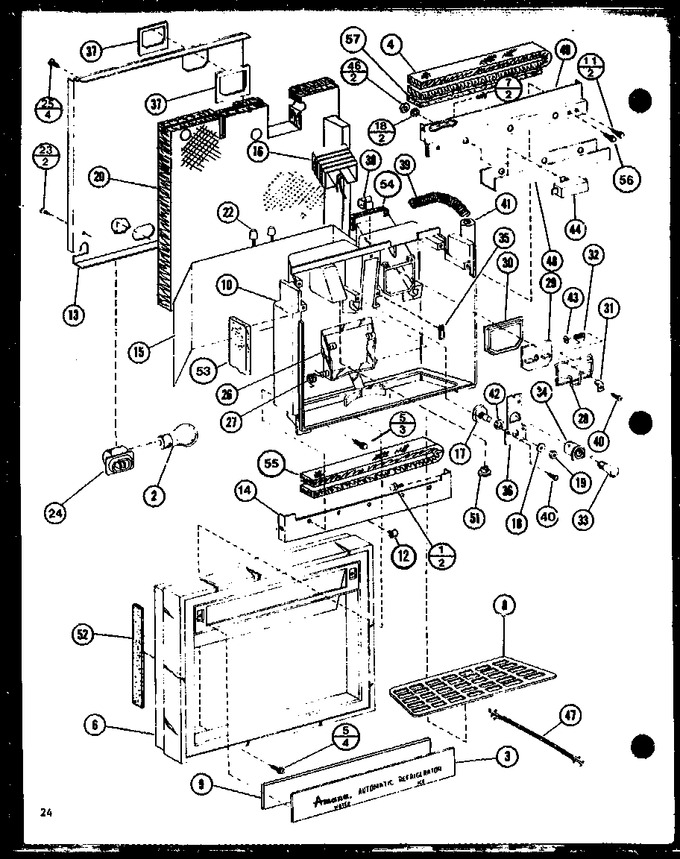

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0216531 | Screw |
|
- | |||||
| 2 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 3 | D7822101 | Nameplate |
|
- | |||||
| 4 | B0523581 | Insulation, Upper |
|
- | |||||
| 5 | M0234466 | Screw |
|
- | |||||
| 6 | R0156652 | Facade Assembly |
|
- | |||||
| 7 | M0232908 | Screw |
|
- | |||||
| 8 | D7531601 | Grille-sump-cav K |
|
- | |||||
| 9 | C8902301 | Mtg Pad Nameplate K |
|
- | |||||
| 10 | D7526705 | Cavity Dispenser A |
|
- | |||||
| 11 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 12 | A3153701 | Clip |
|
- | |||||
| 13 | D7534202 | Chassis Front |
|
- | |||||
| 14 | C8886706 | Mullion, Lower, Almond |
|
- | |||||
| 14 | C8886702 | Mullion, Lower, White |
|
- | |||||
| 15 | D7725601 | Heater, Cavity |
|
- | |||||
| 16 | D7725501 | Heater Chute Up Mull |
|
- | |||||
| 17 | M0340108 | Switch Light A |
|
- | |||||
| 18 | M0272511 | Washer |
|
- | |||||
| 19 | M0281401 | Nut A |
|
- | |||||
| 20 | D7698502 | Foam Black, Warid |
|
- | |||||
| 22 | B5778702 | Sleeve |
|
- | |||||
| 23 | M0253916 | Screw |
|
- | |||||
| 24 | B5777701 | Socket Light A |
|
- | |||||
| 25 | M0254022 | Screw A |
|
- | |||||
| 26 | D7422301 | Arm Activate- A |
|
- | |||||
| 27 | B5700602 | Spring Arm A |
|
- | |||||
| 28 | B8346901 | Wire Pivot |
|
- | |||||
| 29 | B5695802 | Door Chute A/ K |
|
- | |||||
| 30 | B5697802 | Gasket, Door |
|
- | |||||
| 31 | A1039101 | Holder Pivot Wire K / A |
|
- | |||||
| 32 | A3211001 | Spring Door Chute K A |
|
- | |||||
| 33 | W10857122 | Light Bulb (Replaces: M0360001) |
|
$ 14.52 | |||||
| 34 | B5708201 | Light Socket A |
|
- | |||||
| 35 | A3211601 | Holder-arm A |
|
- | |||||
| 36 | A3214403 | Mtg Plate |
|
- | |||||
| 37 | A3212304 | Gasket A |
|
- | |||||
| 38 | M0110505 | Clip-cable |
|
- | |||||
| 39 | A3225902 | Spring |
|
- | |||||
| 40 | M0253704 | Screw A K |
|
- | |||||
| 41 | A0329811 | Insulation A |
|
- | |||||
| 42 | 212643 | Sealer Ft. A / K (Replaces: M0275507) |
|
Immediately | $ 82.13 | ||||
| 43 | M0287901 | Speed Nut A- K |
|
- | |||||
| 44 | M0340702 | Switch A |
|
- | |||||
| 46 | M0281401 | Nut A |
|
- | |||||
| 47 | D7698701 | Harness, Cavity A |
|
- | |||||
| 48 | B8338901 | Shield A |
|
- | |||||
| 49 | C8887802 | Upper Mullion, Pnt (white) |
|
- | |||||
| 49 | C8887806 | Mullion L |
|
- | |||||
| 51 | M0580401 | Grommet A |
|
- | |||||
| 52 | B8350201 | Facade Stiffener |
|
- | |||||
| 52 | B8350301 | Facade Stiffener |
|
- | |||||
| 53 | C8947001 | Gasket, Cavity A |
|
- | |||||
| 53 | C8947003 | Gasket A |
|
- | |||||
| 54 | C8947002 | Gasket, Cavity A |
|
- | |||||
| 55 | B0523582 | Insulation |
|
- | |||||
| 56 | 681390 | Screw (Replaces: M0251015) |
|
$ 13.71 | |||||
| 57 | B0523563 | Insulation Ft. K |
|
- |
