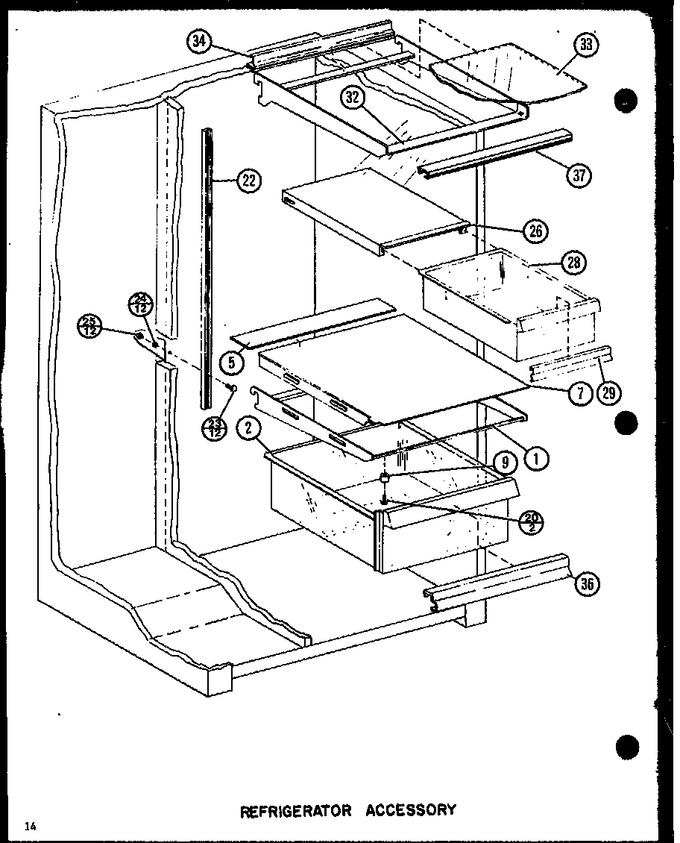

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7599701		Frame		Appelez-nous	-
1	D7599601		Frame Crisper		Appelez-nous	-
1	D7601601		Frame, Crisper Top		Appelez-nous	-
2	D3966704		Top, Crisper And Top, Fruit Bi		Appelez-nous	-
7	D3966704		Top, Crisper And Top, Fruit Bi		Appelez-nous	-
7	D3951406		Top Fruit Pan		Appelez-nous	-
9	A3213401		Glide		Appelez-nous	-
20	M0230727		Screw		Appelez-nous	-
22	D7103701		Ladder		Appelez-nous	-
23	M0258801		Stud		Appelez-nous	-
24	M0270508		Washer		Appelez-nous	-
32	D7601403		Net-frame,cantilever		Appelez-nous	-
32	D7601404		Frame Cont.		Appelez-nous	-
34	C8803102		Trim		Appelez-nous	-
34	C8831507		Trim A		Appelez-nous	-
36	C8831708		Trim		Appelez-nous	-
37	C8774504		Trim		Appelez-nous	-
NI	C8823423		Glass Shelf Assy		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
