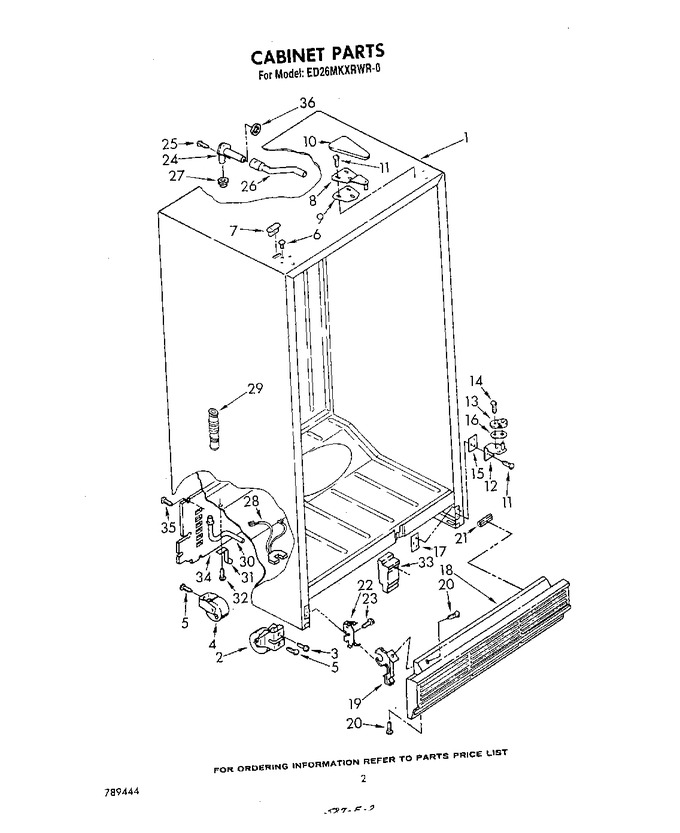

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 981127 | Roller, Front (2) |
|
- | |||||
| 3 | 488681 | Screw, 5/16-24 X 1 |
|
- | |||||
| 4 | WPW10250570 | Roller, Rear (2) (Replaces: 981122) |
|
$ 42.18 | |||||
| 5 | 488454 | Screw, 1/4-28 X 1/2 (4) |
|
- | |||||
| 6 | 1101314 | Hole, Plug (toast) |
|
- | |||||
| 6 | 989958 | Hole Plug (almond) |
|
- | |||||
| 6 | 989957 | Hole, Plug (golden Harvest) |
|
- | |||||
| 6 | 849391 | Hole, Plug (white) |
|
- | |||||
| 6 | 1101315 | Hole, Plug (platinum) |
|
- | |||||
| 7 | 992770 | Hole Plug (white) |
|
- | |||||
| 7 | 1101316 | Hole Plug (toast) |
|
- | |||||
| 7 | 1101317 | Hole Plug (platinum) |
|
- | |||||
| 7 | 992773 | Hole Plug (golden Harvest) |
|
- | |||||
| 7 | 992774 | Hole Plug (almond) |
|
- | |||||
| 8 | 842039 | Hinge, Top |
|
- | |||||
| 9 | 992854 | Shim, Hinge Top |
|
- | |||||
| 10 | 1100172 | Hinge Cover (toast) |
|
- | |||||
| 10 | 989896 | Hinge Cover (golden Harvest) |
|
- | |||||
| 10 | 989194 | Hinge Cover (almond) |
|
- | |||||
| 10 | 842010 | Hinge Cover (white) |
|
- | |||||
| 10 | 1100173 | Hinge Cover (platinum) |
|
- | |||||
| 11 | WP999367 | Screw, 10-32 X 23/32 (Replaces: 489105) |
|
$ 8.56 | |||||
| 11 | 488949 | Screw (repair) |
|
- | |||||
| 12 | 986764 | Hinge Bottom (l.h) |
|
- | |||||
| 12 | 986763 | Hinge Bottom (r.h) |
|
- | |||||
| 13 | WPW10329686 | Door Closer (Replaces: 986759) |
|
Immediately | $ 5.90 | ||||
| 14 | WP486579 | Screw, 8-32 X 1/4 (Replaces: 487983) |
|
$ 7.89 | |||||
| 15 | 836196 | Shim, Bottom Hinge |
|
- | |||||
| 16 | 987179 | Shim, Door Closer |
|
- | |||||
| 17 | 836162 | Tap Plate |
|
- | |||||
| 18 | 944265 | Grille, Exterior (golden Harvest) |
|
- | |||||
| 18 | 944263 | Grille, Exterior (white) |
|
- | |||||
| 18 | 1101408 | Grille, Exterior (platinum) |
|
- | |||||
| 18 | 1101407 | Grille, Exterior (toast) |
|
- | |||||
| 18 | 944267 | Grille, Exterior (almond) |
|
- | |||||
| 19 | WP944224 | Grille Support (Replaces: 944224) |
|
$ 7.94 | |||||
| 20 | 489085 | Screw, 8-22 X 5/16 |
|
- | |||||
| 21 | 546131 | Bumper, Grille |
|
- | |||||
| 22 | 989068 | Clip, Grille |
|
- | |||||
| 23 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 24 | WP2196157 | Fitting, Water Tube (Replaces: 983990) |
|
Immediately | $ 12.59 | ||||
| 25 | WP98165 | Screw, 8 X 5/8 (Replaces: 488401) |
|
$ 8.57 | |||||
| 26 | 983656 | Water Inlet Tube |
|
- | |||||
| 27 | WP487996 | Cap, Plastic (Replaces: 487996) |
|
$ 8.67 | |||||
| 28 | 548734 | Wire Assembly (water Valve) |
|
- | |||||
| 29 | 982904 | Drain Fitting, Liner |
|
- | |||||
| 30 | 841646 | Extension, Drain Fitting |
|
- | |||||
| 31 | 841648 | Clip, Drain Fitting |
|
- | |||||
| 32 | 488978 | Screw, 8-15 X 3/8 |
|
- | |||||
| 33 | 836372 | Insert, Air Baffle |
|
- | |||||
| 34 | 851174 | Cover, Unit Compartment |
|
- | |||||
| 35 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 8.05 | |||||
| 36 | WP1106508 | Seal, Gasket (Replaces: 1103059) |
|
Immediately | $ 10.43 |
