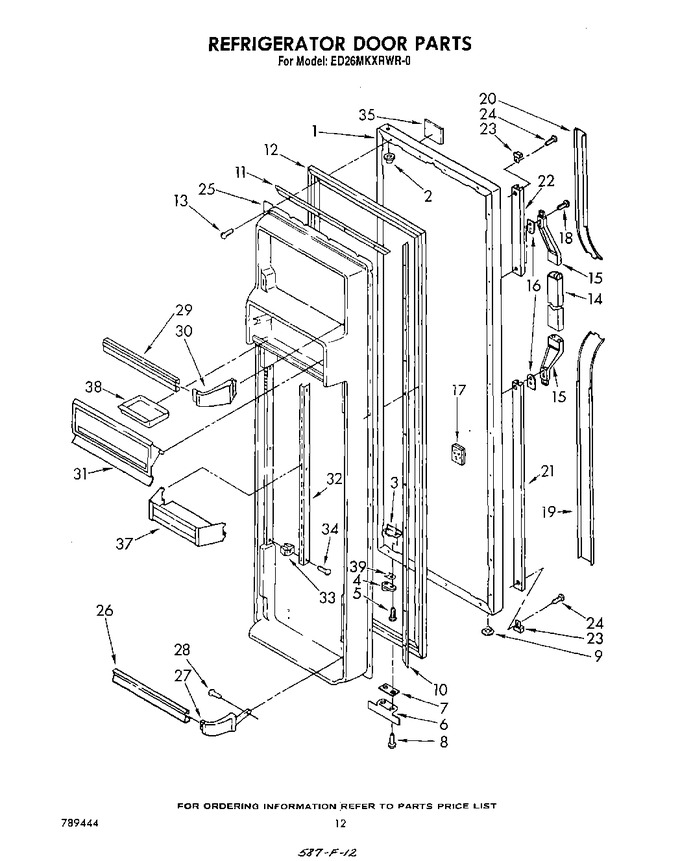

07 - Refrigerator Door


08 - Freezer Door


09 - Unit , Not Illustrated And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	941296		Refrigerator, Door Panel (almond)		Appelez-nous	-
1	1101409		Refrigerator, Door Panel (toast)		Appelez-nous	-
1	1101410		Refrigerator Door Panel (platinum)		Appelez-nous	-
1	941292		Refrigerator, Door Panel (white)		Appelez-nous	-
1	941294		Refrigerator, Door Panel (golden Harvest)		Appelez-nous	-
2	509929		Cap, Hinge Sleeve		Appelez-nous	-
3	988402		Tap Plate		Appelez-nous	-
4	4318165		Door Closer, Cam   (Replaces: 986758)			Immediately	$ 29.74
5	WP489069		Screw, 89 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
6	988420		Bracket, Door Stop		Appelez-nous	-
7	988421		Shim		Appelez-nous	-
8	488549		Screw, 89 X 1/2		Appelez-nous	-
9	534927		Hole Plug		Appelez-nous	-
10	982887		Retainer, Gasket Side (2)		Appelez-nous	-
11	836121		Retainer, Gasket Top & Bottom (2)		Appelez-nous	-
12	939341		Door, Gasket Magnetic		Appelez-nous	-
13	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
13	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
14	1108914		Handle, Center (for Platinum Model Only)		Appelez-nous	-
14	1108897		Handle, Center		Appelez-nous	-
15	935103		Center End Cap (2)		Appelez-nous	-
16	935075		Shim, Center Handle		Appelez-nous	-
17	941242		Screw Anchor		Appelez-nous	-
18	WPW10141645		Screw, 8 X 1/2 (4)   (Replaces: 489084)				$ 8.05
19	1108906		Insert, Handle (bottom) (toast)		Appelez-nous	-
19	1108903		Insert, Handle (bottom) (white)		Appelez-nous	-
19	1108904		Insert, Handle (bottom) (golden Wheat)		Appelez-nous	-
19	1108905		Insert, Handle (bottom) (almond)		Appelez-nous	-
19	1108907		Insert, Handle (bottom) (platinum)		Appelez-nous	-
20	1108926		Insert, Handle (top) (platinum)		Appelez-nous	-
20	1108922		Insert, Handle (top) (white)		Appelez-nous	-
20	1108923		Insert Handle (top) (golden Wheat)		Appelez-nous	-
20	1108924		Insert, Handle (top) (almond)		Appelez-nous	-
20	1108925		Insert, Handle (top) (toast)		Appelez-nous	-
21	941262		Retainer Insert		Appelez-nous	-
22	941297		Retainer Insert		Appelez-nous	-
23	941259		End Cap		Appelez-nous	-
24	489075		Screw, 10-32 X 5/8		Appelez-nous	-
25	988620		Interior Panel		Appelez-nous	-
26	1108919		Trim, Door Shelf		Appelez-nous	-
27	849223		Support, Trim		Appelez-nous	-
28	00487953		Screw, 8-18 X 1/2   (Replaces: 487953)				$ 177.40
28	WP488787		Screw (repair)   (Replaces: 488704)				$ 11.26
29	1108918		Trim, Door Shelf		Appelez-nous	-
30	WP849996		Support, Trim   (Replaces: 849996)				$ 7.95
31	1108721		Compartment Door		Appelez-nous	-
32	983804		Shelf, Ladder (2)		Appelez-nous	-
33	537095		Expansion Clip		Appelez-nous	-
34	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 8.28
35	1110077		Nameplate (for Platinum Model Only)		Appelez-nous	-
35	945116		Nameplate Assembly		Appelez-nous	-
37	1108920		Door Shelf Cantilever		Appelez-nous	-
38	520747		Tray, Butter		Appelez-nous	-
39	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
