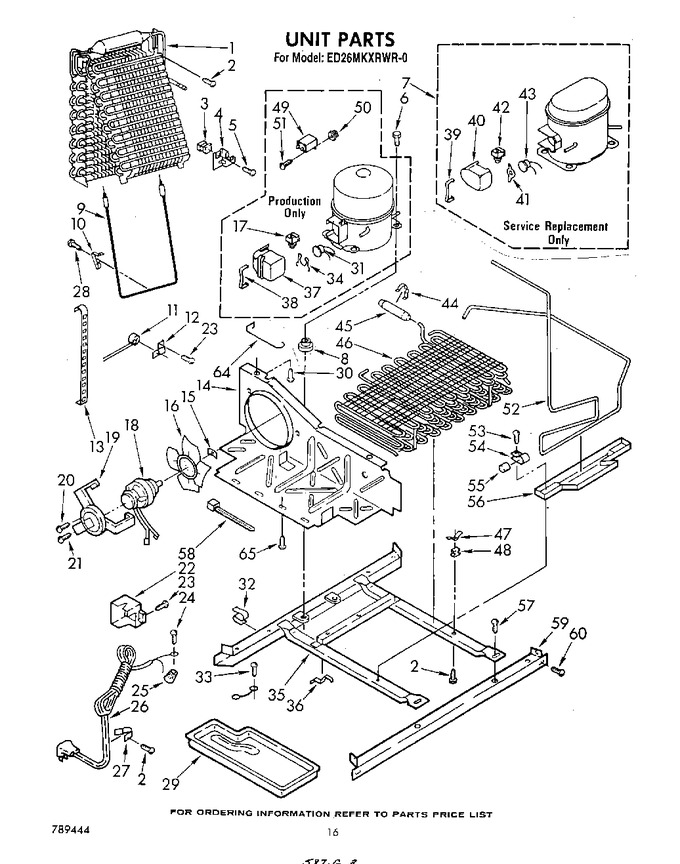

09 - Unit , Not Illustrated And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1105040		Evaporator		Appelez-nous	-
2	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
3	944454		Grommet, Screw		Appelez-nous	-
4	842436		Support, Evaporator		Appelez-nous	-
5	WP681414		Screw, 10 - 12 X 1/2   (Replaces: 489049)			Immediately	$ 8.47
6	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489116)				$ 7.79
7	482614		Compress Kit (includes Items 39, 40, 41, 42 & 43) (also Order 876765 Tube Kit)		Appelez-nous	-
8	876811		Grommet (4)   (Replaces: 1108038)				$ 7.79
9	989607		Heater, Defrost		Appelez-nous	-
10	938023		Clamp, Heater		Appelez-nous	-
11	WP4387489		Defrost, Bimetal (alternate)   (Replaces: 989579)				$ 108.99
11	DTS70		Defrost, Bimetal   (Replaces: 989578)			Immediately	$ 11.36
12	850664		Clamp		Appelez-nous	-
13	989200		Shield, Evaporator (4)		Appelez-nous	-
14	851167		Baffle, Air		Appelez-nous	-
15	WP486692		Nut, Speed   (Replaces: 486692)				$ 8.43
16	989524		Blade, Fan		Appelez-nous	-
17	1101014		Relay		Appelez-nous	-
18	833697		Motor, Fan   (Replaces: 946539)			Immediately	$ 88.15
19	548695		Bracket		Appelez-nous	-
20	681390		Screw, 8-36 X 3/8 (3)   (Replaces: 489019)				$ 13.71
21	488624		Screw, 8 X 3/8 (3)		Appelez-nous	-
22	850482		Box, Junction		Appelez-nous	-
23	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 8.28
24	488474		Screw, Ground		Appelez-nous	-
25	227991		Wire Connector		Appelez-nous	-
26	850626		Cord, Service		Appelez-nous	-
27	549193		Clamp				$ 14.06
28	W11693756		Screw, 8 X 5/8   (Replaces: 487582)			Immediately	$ 14.76
29	982899		Tray, Evaporator		Appelez-nous	-
30	488978		Screw, 8-15 X 3/8		Appelez-nous	-
31	1105018		Overload		Appelez-nous	-
32	548745		Clip, Wire (2)		Appelez-nous	-
33	303776		Screw, 8-32 X 5/16   (Replaces: 488879)		Appelez-nous	-
34	943320		Overload Spring		Appelez-nous	-
35	945484		Frame Assembly		Appelez-nous	-
36	548744		Clip (2)		Appelez-nous	-
37	1105055		Terminal Cover		Appelez-nous	-
38	943322		Terminal Cover Strap		Appelez-nous	-
39	549342		Spring		Appelez-nous	-
40	549505		Case, Relay		Appelez-nous	-
41	549086		Overload Spring		Appelez-nous	-
42	989509		Relay		Appelez-nous	-
43	753526		Overload		Appelez-nous	-
44	548508		Clamp		Appelez-nous	-
45	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 57.13
46	945525		Condenser Assembly		Appelez-nous	-
47	548738		Clamp (4)		Appelez-nous	-
48	943447		Grommet (4)		Appelez-nous	-
49	WPW10662129		Running Capacitor   (Replaces: 1100804)			Immediately	$ 58.86
50	509812		Screw Grommet		Appelez-nous	-
51	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.76
52	1105019		Exchanger, Heat		Appelez-nous	-
53	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 22.22
54	510716		Clamp (2)		Appelez-nous	-
55	510769		Dampener (2)		Appelez-nous	-
56	945572		Pan, Drip		Appelez-nous	-
57	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
58	851095		Strap		Appelez-nous	-
59	851177		Rail, Front		Appelez-nous	-
60	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
64	851165		Guard, Fan		Appelez-nous	-
65	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
65	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
65	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
65	261891		Enamel, Gold (1 Qt. Uncut)		Appelez-nous	-
65	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
65	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
65	833938		Kit, Terminal Connector				$ 8.47
65	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
65	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
65	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
65	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
65	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
65	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
65	488624		Screw, 8 X 3/8 (4)		Appelez-nous	-
65	978026		Valve, Access (5/16``)			Immediately	$ 134.49
65	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
65	978028		Valve, Access (1/2)		Appelez-nous	-
65	978029		Valve Access (5/8``)				$ 93.85
65	978030		Valve, Access (3/4``)				$ 137.25
65	876764		Valve, Access(3/16``)			Immediately	$ 95.92
65	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
65	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
65	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
65	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
65	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
65	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
65	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
65	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
65	799908		Silicone (spray)		Appelez-nous	-
65	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
65	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
65	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
65	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
65	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
65	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	677971		Ice Maker		Appelez-nous	-
	LIT1108966		Care & Use Guide		Appelez-nous	-
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	261890		Xenamel, Gold (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	677967		Dishwasher		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	677821		Compactor				$ 35.01
	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
	677813		Automatic Washer (belt Drive)		Appelez-nous	-
	LIT789444		Parts List		Appelez-nous	-
	LIT1108968		Energy Label		Appelez-nous	-
	LIT1105013		Service & Wiring Sheet		Appelez-nous	-
