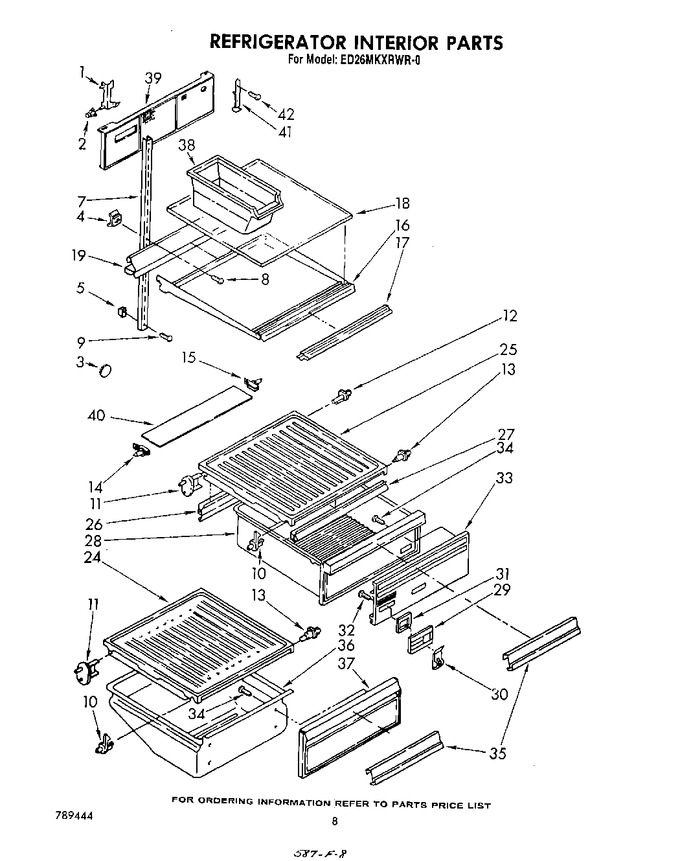

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	842356		Support, Light L.s.		Appelez-nous	-
2	843945		Clip, Tubular		Appelez-nous	-
3	659598		Hole, Plug		Appelez-nous	-
4	983604		Screw Anchor		Appelez-nous	-
5	520965		Screw Support, Ladder (8)				$ 31.35
7	934264		Shelfladder (2)		Appelez-nous	-
8	488357		Screw, 8 X 1-1/4 (5)		Appelez-nous	-
9	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
9	488980		Screw (repair)		Appelez-nous	-
10	984779		Shelf, Stud		Appelez-nous	-
11	937521		Shelf Stud		Appelez-nous	-
12	936591		Shelf Stud				$ 6.18
13	208500		Shelf, Stud		Appelez-nous	-
14	935982		Stud Light Lens (l.s.)		Appelez-nous	-
15	935243		Stud, Light Lens (r.s.)		Appelez-nous	-
16	936787		Shelf, Cantilever		Appelez-nous	-
17	849021		Trim Shelf Cantilever		Appelez-nous	-
18	1108782		Glass, Cantilever Shelf		Appelez-nous	-
19	849028		Reflector, Cantilever Shelf		Appelez-nous	-
24	1101202		Pan Slide & Cover		Appelez-nous	-
25	1108778		Pan Slide & Cover		Appelez-nous	-
26	982588		Crisper Gasket Rear		Appelez-nous	-
27	982587		Crisper Gasket Front		Appelez-nous	-
28	943112		Pan Crisper		Appelez-nous	-
29	942234		Housing, Humidity Control		Appelez-nous	-
30	942235		Slide, Humidity Control		Appelez-nous	-
31	942236		Seal, Humidity Control		Appelez-nous	-
32	489041		Screw, 6-19 X 7/16		Appelez-nous	-
33	1108777		Front Cover, Crisper		Appelez-nous	-
34	WP488729		Screw, 8 X 1/2   (Replaces: 488783)			Immediately	$ 8.28
34	488132		Screw (repair)		Appelez-nous	-
35	984750		Overlay, Pan Front		Appelez-nous	-
36	840037		Pan, Meats		Appelez-nous	-
37	1108780		Front Cover, Meat Pan		Appelez-nous	-
38	WP982704		Container, Utility   (Replaces: 1106048)				$ 32.55
39	943218		Light Lens, Refrigerator		Appelez-nous	-
40	935898		Light Lens, Crisper		Appelez-nous	-
41	984552		Support Light Lens, Refrigerator		Appelez-nous	-
42	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
