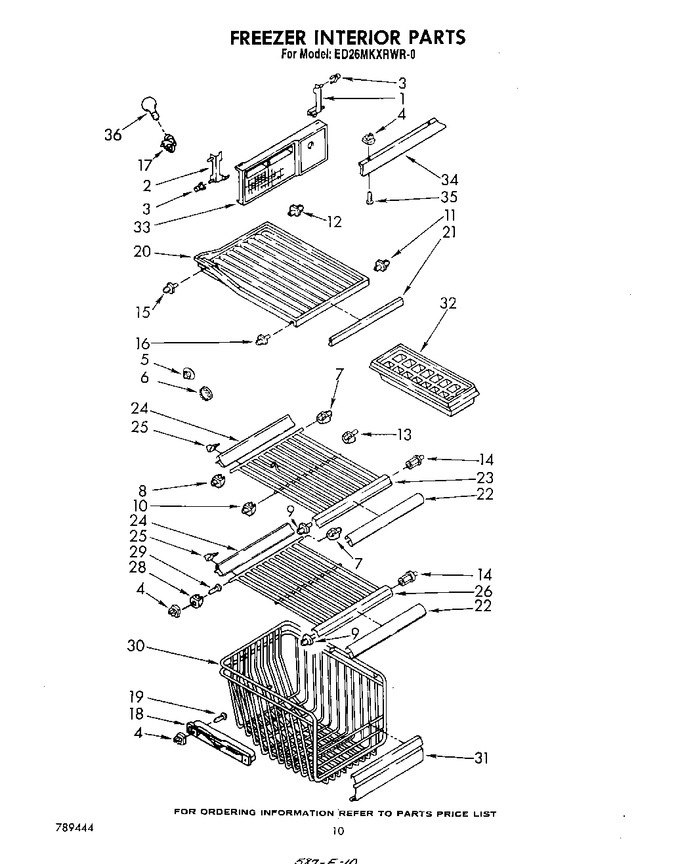

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 842355 | Support, Light R.s. |
|
- | |||||
| 2 | 842356 | Support, Light L.s. |
|
- | |||||
| 3 | 843945 | Clip, Tubular |
|
- | |||||
| 4 | 842339 | Grommet |
|
- | |||||
| 5 | 519890 | Hole, Plug |
|
- | |||||
| 6 | 659598 | Hole, Plug |
|
- | |||||
| 7 | 937516 | Shelf Stud, Saddle |
|
- | |||||
| 8 | 523264 | Shelf Stud, Saddle |
|
- | |||||
| 9 | 529758 | Shelf, Stud |
|
- | |||||
| 10 | 509108 | Shelf Stud |
|
- | |||||
| 11 | 937513 | Stud, Shelf |
|
- | |||||
| 12 | 991924 | Stud, Shelf |
|
- | |||||
| 13 | 936958 | Stud, Shelf |
|
- | |||||
| 14 | 936957 | Shelf, Stud |
|
- | |||||
| 15 | 521878 | Shelf Stud |
|
- | |||||
| 16 | 536410 | Shelf, Stud |
|
- | |||||
| 17 | 4387478 | Socket (Replaces: 851067) |
|
Immediately | $ 115.67 | ||||
| 18 | 837554 | Track, Shelf (r.s.) |
|
- | |||||
| 18 | 837557 | Track, Shelf (l.s.) |
|
- | |||||
| 19 | W11693756 | Screw, 8-15 X 5/8 (Replaces: 487042) |
|
Immediately | $ 14.76 | ||||
| 20 | 986557 | Solid Shelf |
|
- | |||||
| 21 | 986437 | Trim, Shelf |
|
- | |||||
| 22 | 985542 | Trim Shelf, Front |
|
- | |||||
| 23 | 935495 | Wire Shelf |
|
- | |||||
| 24 | 935496 | Reflector, Shelf |
|
- | |||||
| 25 | 939348 | Reflector, Clip |
|
- | |||||
| 26 | 943996 | Wire Shelf |
|
- | |||||
| 28 | 836492 | Shelf Stud (l.s.) |
|
- | |||||
| 29 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487109) |
|
Immediately | $ 8.28 | ||||
| 30 | 935499 | Basket, Freezer |
|
- | |||||
| 31 | 985546 | Trim, Basket |
|
- | |||||
| 32 | WP841180A | Ice Tray (Replaces: 841180) |
|
Immediately | $ 47.84 | ||||
| 33 | 985539 | Light Lens, Freezer |
|
- | |||||
| 34 | SM999 | Baffle, Liner Top (Replaces: 983369) |
|
Immediately | $ 30.26 | ||||
| 35 | WP489069 | Screw, 8 X 1/2 (Replaces: 488772) |
|
Immediately | $ 8.40 | ||||
| 36 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 |
