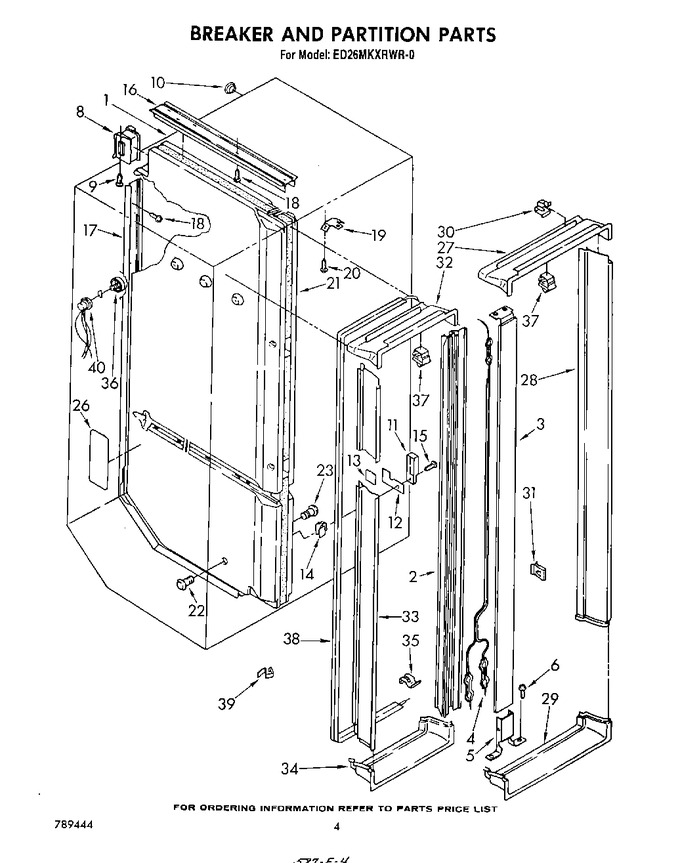

03 - Breaker And Partition


04 - Air Flow And Control


05 - Refrigerator Interior


06 - Freezer Interior


07 - Refrigerator Door


08 - Freezer Door


09 - Unit , Not Illustrated And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	935613		Breaker Frame, Mullion		Appelez-nous	-
3	935616		Mullion, Front (golden Harvest)		Appelez-nous	-
3	1101403		Mullion, Front (toast)		Appelez-nous	-
3	1101404		Mullion, Front (platinum)		Appelez-nous	-
3	935614		Mullion, Front (white)		Appelez-nous	-
3	935618		Mullion, Front (almond)		Appelez-nous	-
4	935620		Heater, Mullion		Appelez-nous	-
5	935619		Bracket, Mullion		Appelez-nous	-
6	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 487900)			Immediately	$ 8.28
6	WP308685		Screw (repair)   (Replaces: 488258)			Immediately	$ 7.87
8	848433		Control Connector & Gasket Assembly		Appelez-nous	-
9	WP488163		Screw, 8 X 13/16   (Replaces: 488208)				$ 7.92
10	851020		Grommet, Wiring		Appelez-nous	-
11	984101		Escutcheon Meat		Appelez-nous	-
12	984102		Slide, Meat Pan				$ 5.02
13	992358		Pad, Foam		Appelez-nous	-
14	537095		Expansion Clip		Appelez-nous	-
15	486214		Screw 8-15 X 1/2		Appelez-nous	-
16	988458		Track, Divider (top)		Appelez-nous	-
17	1103303		Track, Divider (back & Bottom)		Appelez-nous	-
18	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
19	935666		Retainer Bracket, Divider		Appelez-nous	-
20	WP681414		Screw, 10 X 1/2   (Replaces: 488908)			Immediately	$ 8.47
21	1103360		Divider, Mullion		Appelez-nous	-
22	843888		Retainer, Hole Insert		Appelez-nous	-
23	843887		Insert, Hole		Appelez-nous	-
26	987054		Shield, Divider		Appelez-nous	-
27	992041		Breaker, Trim Top Refrigerator		Appelez-nous	-
28	935637		Breaker, Trim Refrigerator Side		Appelez-nous	-
29	992044		Breaker, Trim Refrigerator Bottom		Appelez-nous	-
30	836090		Breaker Retainer		Appelez-nous	-
31	838849		Breaker Trim, Clip		Appelez-nous	-
32	992046		Trim, Freezer Breaker (top)		Appelez-nous	-
33	935643		Breaker, Trim Freezer Side		Appelez-nous	-
34	939829		Breaker Trim, Freezer (bottom)		Appelez-nous	-
35	937668		Breaker, Trim Clip Bottom		Appelez-nous	-
36	850738		Receptacle Cap		Appelez-nous	-
37	W11384469		Rocker Arm Switch   (Replaces: 549702)			Immediately	$ 39.09
38	934475		Heater, Stile		Appelez-nous	-
39	937205		Retainer Clip, Heater		Appelez-nous	-
40	481658		Wiring Assembly Ice Maker		Appelez-nous	-
