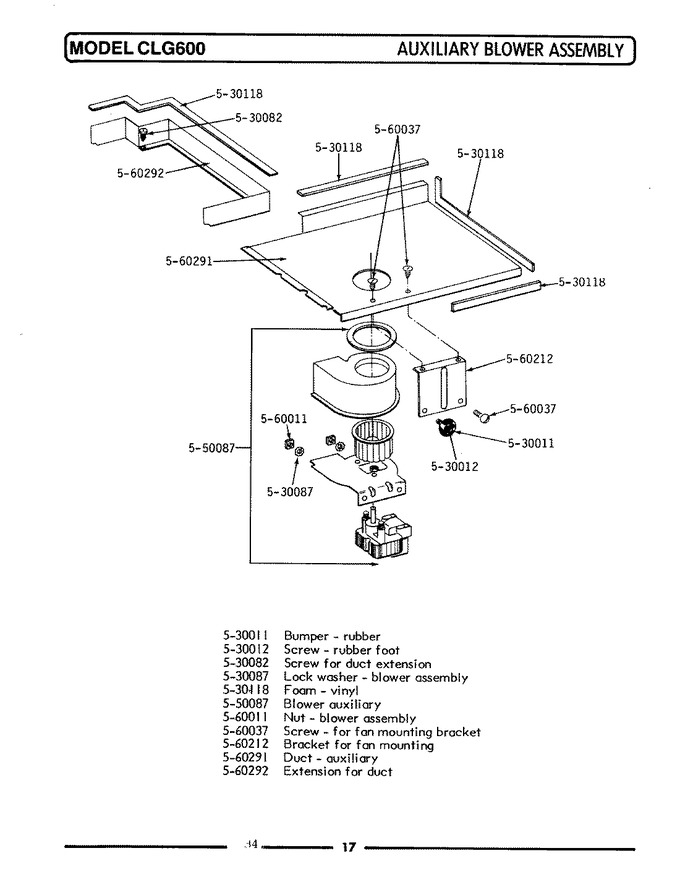

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	530011		Rubber Foot	00	Appelez-nous	-
2	WP250830		Screw   (Replaces: 530012)	00			$ 7.90
3	530082		Screw, No.6 X 3/8 Inch	00	Appelez-nous	-
4	530087		Lock Washer	00	Appelez-nous	-
5	530118		Foam Insulation-exhaust Duc	00	Appelez-nous	-
6	550087		Blower Assembly-auxiliary	00	Appelez-nous	-
7	M0282009		Nut   (Replaces: 560011)	00			$ 12.66
8	WP7101P126-60		Screw   (Replaces: 560037)	00		Immediately	$ 7.52
9	560212		Bracket For Auxillary Blowe	00	Appelez-nous	-
10	560291		Duct-auxiliary	00	Appelez-nous	-
11	560292		Extension For Duct	00	Appelez-nous	-
