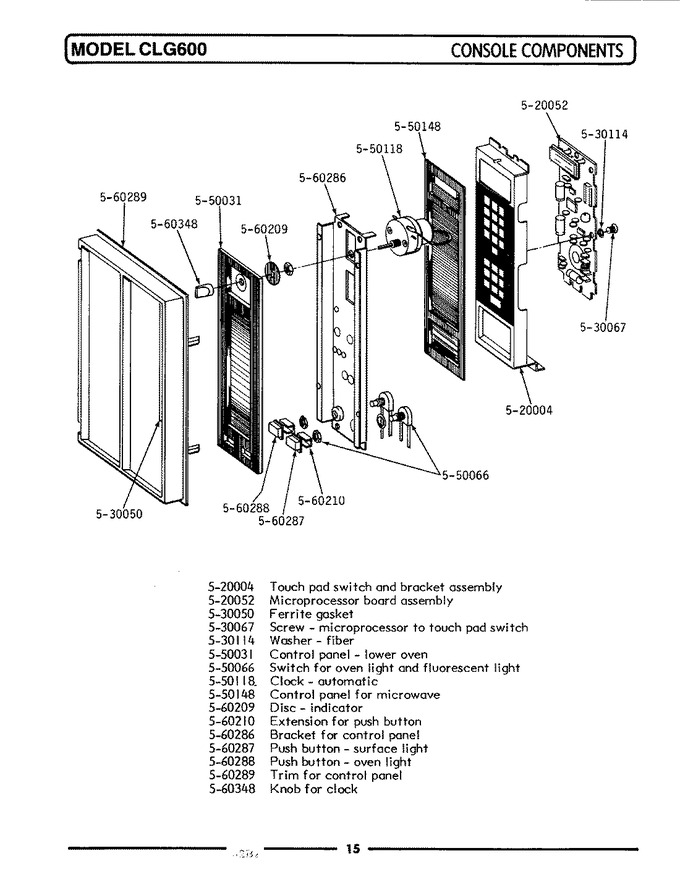

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y520004		Touch Pad Switch W/bracket	00	Appelez-nous	-
2	520052		Microprocessor Board Assm	00	Appelez-nous	-
3	530050		Gasket Insert F/panel-right	00	Appelez-nous	-
4	530067		Screw, No.5-40 X 1/4 Inch	00	Appelez-nous	-
5	530114		Fiber Washer	00	Appelez-nous	-
6	550031		Control Panel-lower Oven	00	Appelez-nous	-
7	550066		Switch For Light	00	Appelez-nous	-
8	550118		Clock Assembly	00	Appelez-nous	-
9	550148		Control Panel For Microwave	00	Appelez-nous	-
10	560209		Time Indicator	00	Appelez-nous	-
11	560210		Extension For Push Button	00	Appelez-nous	-
12	560286		Bracket For Control Panel	00	Appelez-nous	-
13	560287		Push Button	00	Appelez-nous	-
14	560288		Push Button	00	Appelez-nous	-
15	560289		Trim For Control Panel	00	Appelez-nous	-
16	560348		Knob For Clock	00	Appelez-nous	-
