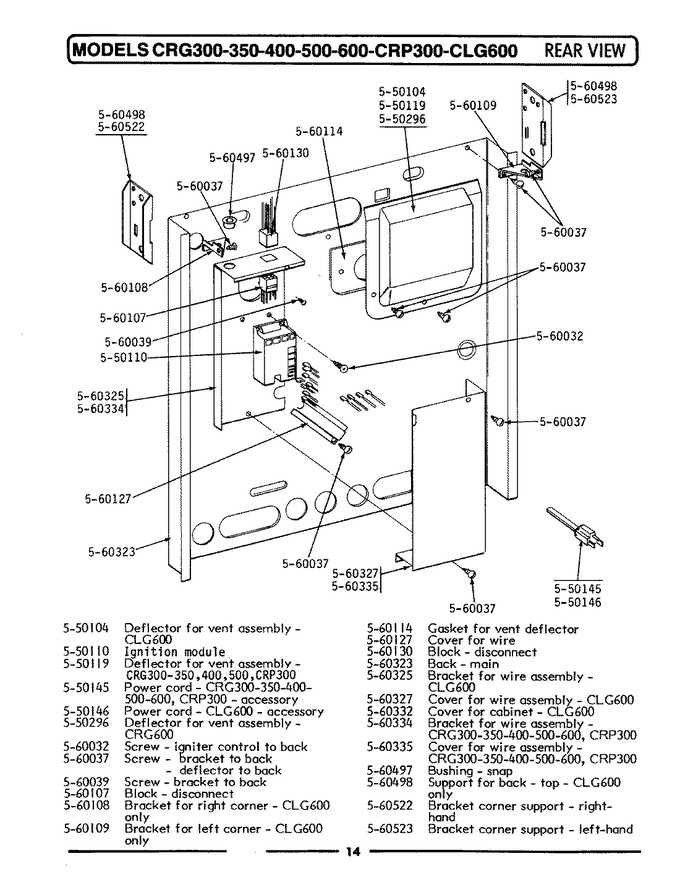

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	550104		Deflector For Vent Assembly	00	Appelez-nous	-
2	550110		Control For Igniter	00	Appelez-nous	-
3	550146		Power Cord	00	Appelez-nous	-
4	WP355214		Screw   (Replaces: 560032)	00		Immediately	$ 7.92
5	WP7101P126-60		Screw   (Replaces: 560037)	00		Immediately	$ 7.52
6	560039		Screw-inner Door Lining	00	Appelez-nous	-
7	560107		Block-disconnect	00	Appelez-nous	-
8	560108		Bracket For Corner-right	00	Appelez-nous	-
9	560109		Bracket For Corner-left	00	Appelez-nous	-
10	560114		Gasket For Vent Deflector	00	Appelez-nous	-
11	560127		Cover For Wire	00	Appelez-nous	-
12	560130		Lock-disconnect	00	Appelez-nous	-
13	560323		Back Assembly	00	Appelez-nous	-
14	560325		Bracket For Wire Assembly	00	Appelez-nous	-
15	560327		Cover For Wire Assembly	00	Appelez-nous	-
17	560497		Bushing	00	Appelez-nous	-
18	560498		Support For Back	00	Appelez-nous	-
19	560522		Bracket-right Hand	00	Appelez-nous	-
20	560523		Bracket-left Hand	00	Appelez-nous	-
NI	560332		Cover For Wire	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
