Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 530073 Nut For Ground Screw 00 Appelez-nous -
2 530087 Lock Washer 00 Appelez-nous -
3 550019 Fluorescent Light 00 Appelez-nous -
4 WPW10245259 Terminal Block   (Replaces: 550044) 00 In-Stock Immediately $ 31.65

5 550059 Base For Starter 00 Appelez-nous -
6 550060 Outlet 00 Appelez-nous -
7 550062 Starter - Fluorescent Light 00 Appelez-nous -
8 550068 Socket For Light-left 00 Appelez-nous -
9 550069 Socket For Light-right 00 Appelez-nous -
10 550083 Support Assembly-right 00 Appelez-nous -
11 550084 Support Assembly-left 00 Appelez-nous -
12 WPW10068250 Screw   (Replaces: 560005) 00 Special Order $ 3.84

13 M0282009 Nut   (Replaces: 560011) 00 Special Order $ 12.66

14 WP7101P126-60 Screw   (Replaces: 560036) 00 In-Stock Immediately $ 7.52

15 WP7101P126-60 Screw   (Replaces: 560037) 00 In-Stock Immediately $ 7.52

16 560039 Screw-inner Door Lining 00 Appelez-nous -
17 560041 Screw 00 Appelez-nous -
18 560091 Insulation 00 Appelez-nous -
19 560202 Bushing 00 Appelez-nous -
20 560203 Channel Bracket 00 Appelez-nous -
21 560204 Glass Panel 00 Appelez-nous -
22 560206 Trim For Glass 00 Appelez-nous -
23 560207 Trim For Glass 00 Appelez-nous -
24 560211 Bracket Support 00 Appelez-nous -
25 560213 Baffle For Vent 00 Appelez-nous -
26 560214 Tray For Wire 00 Appelez-nous -
27 560280 Base For Microwave 00 Appelez-nous -
28 560281 Base For Cabinet 00 Appelez-nous -
29 560283 Insert For Support-right 00 Appelez-nous -
30 560284 Insert For Support-left 00 Appelez-nous -
31 560333 Cover For Vent 00 Appelez-nous -
32 560448 Support Panel-white 00 Appelez-nous -
35 560449 Support Panel-white 00 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

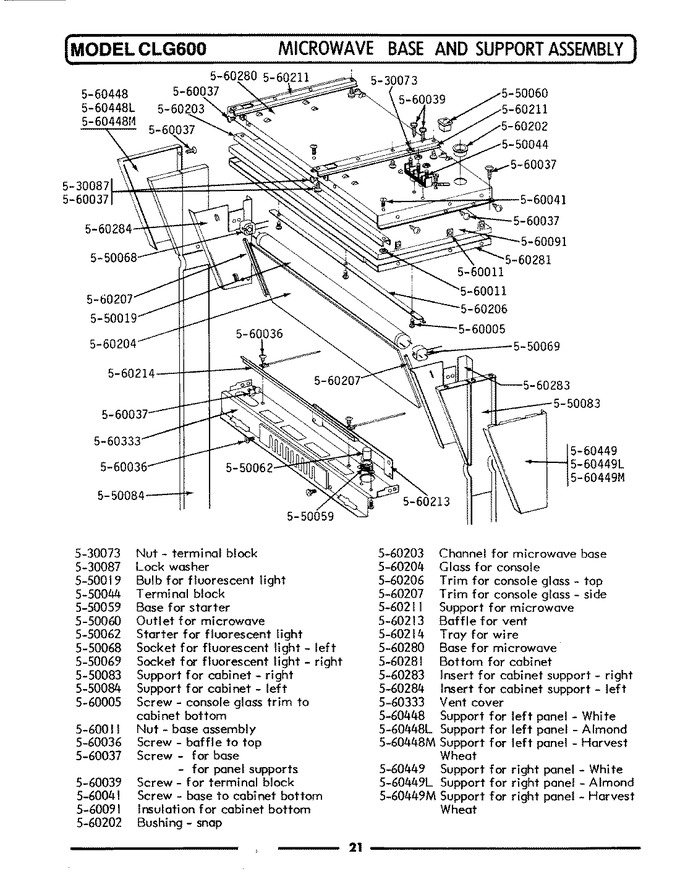

Diagram for CLG600
