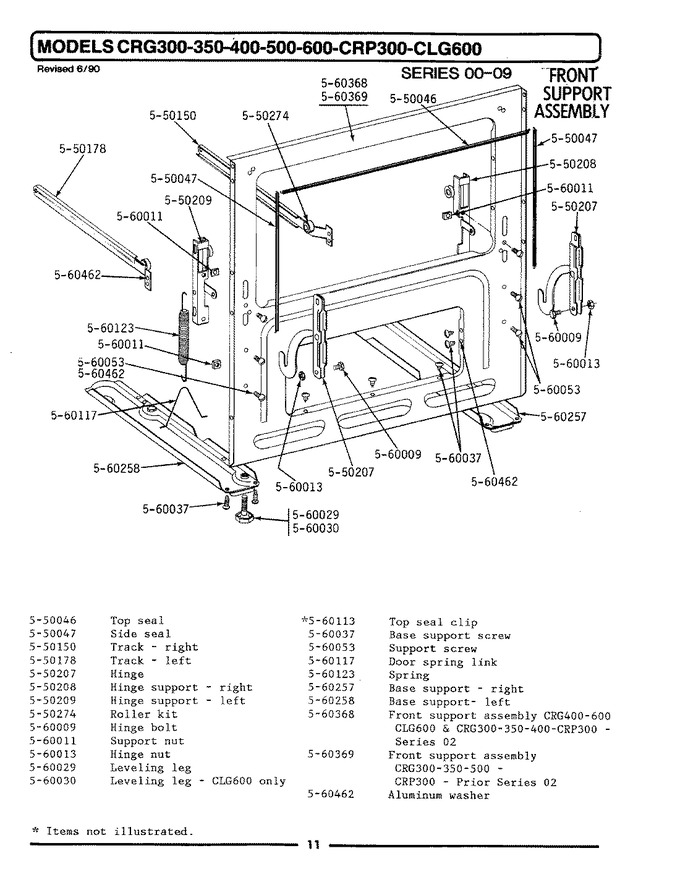

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	550046		Seal For Oven Door	00	Appelez-nous	-
2	550047		Seal For Oven Door	00	Appelez-nous	-
3	550150		Track For Broiler-right	00	Appelez-nous	-
4	550178		Track For Broiler-left	00	Appelez-nous	-
5	550207		Hinge For Oven Door	00	Appelez-nous	-
6	550208		Hinge Support-right	00	Appelez-nous	-
7	550209		Hinge Support-left	00	Appelez-nous	-
8	550274		Roller Repair Kit	00	Appelez-nous	-
9	560009		Bolt	00	Appelez-nous	-
10	M0282009		Nut   (Replaces: 560011)	00			$ 12.66
11	560013		Nut	00	Appelez-nous	-
12	560029		Adjustable Leg	00	Appelez-nous	-
13	560030		Adjustable Leg	00	Appelez-nous	-
14	560113		Clip For Door Seal	00	Appelez-nous	-
15	WP7101P126-60		Screw   (Replaces: 560037)	00		Immediately	$ 7.52
16	560053		Screw	00	Appelez-nous	-
17	560117		Link For Door Spring	00	Appelez-nous	-
18	560123		Spring For Oven Door	00	Appelez-nous	-
19	560257		Base Support-right	00	Appelez-nous	-
20	560258		Base Support-left	00	Appelez-nous	-
21	560368		Front Support Assembly	00	Appelez-nous	-
22	560462		Washer	00	Appelez-nous	-
