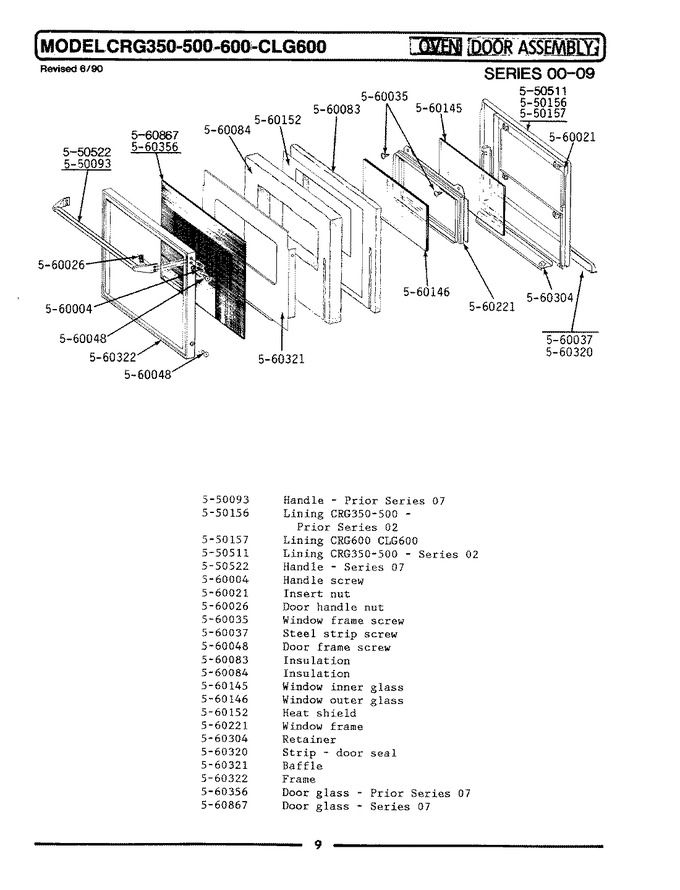

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	550093		Handle For Door	00	Appelez-nous	-
2	550157		Oven Door Lining	00	Appelez-nous	-
3	550522		Door Handle	00	Appelez-nous	-
4	560004		Bolt	00	Appelez-nous	-
5	560021		Nut	00	Appelez-nous	-
6	M0282005		Nut-handle To Door   (Replaces: 560026)	00			$ 7.42
7	560035		Screw-frame To Inner Door	00	Appelez-nous	-
8	WP7101P126-60		Screw   (Replaces: 560037)	00		Immediately	$ 7.52
9	D516737W		Screw-door Frame   (Replaces: 560048)	00			$ 380.06
10	560083		Insulation	00	Appelez-nous	-
11	560084		Insulation	00	Appelez-nous	-
12	560145		Glass-inner	00	Appelez-nous	-
13	560146		Glass-outer	00	Appelez-nous	-
14	560152		Heat Shield	00	Appelez-nous	-
15	560221		Frame For Glass	00	Appelez-nous	-
16	560304		Retainer For Insulation	00	Appelez-nous	-
17	560320		Strip For Door Seal	00	Appelez-nous	-
18	560321		Baffle For Door	00	Appelez-nous	-
19	560322		Frame For Door	00	Appelez-nous	-
20	560356		Glass-outer	00	Appelez-nous	-
21	560867		Glass, Oven Door	00	Appelez-nous	-
