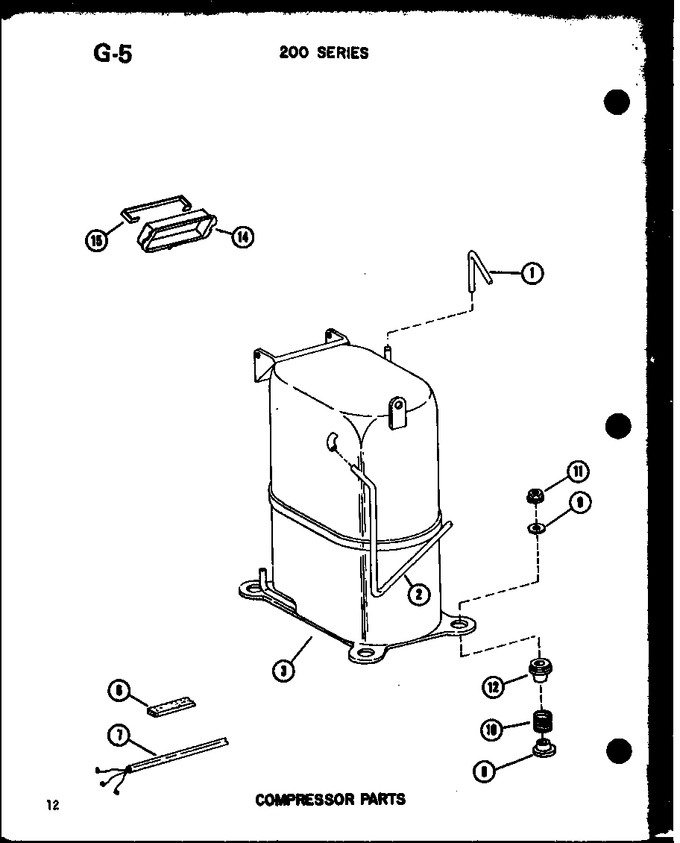

01 - Compressor Parts
02 - Condenser Parts
03 - Evap Parts
04 - Exterior Parts
05 - Heater Assy Mfg. By Tuttle
06 - Interior Parts
07 - Page 2
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A3336001 | X$x Process Tube |
|
- | |||||
| 2 | D5480201 | Tube-suction |
|
- | |||||
| 3 | D5547001 | Compressor, Copeland Srb5-0200 |
|
- | |||||
| 6 | A3030307 | Gasket |
|
- | |||||
| 7 | C5947001 | Wiring Harness |
|
- | |||||
| 8 | A3314101 | Grommet |
|
- | |||||
| 9 | M0274008 | Washer,fibre |
|
- | |||||
| 10 | A3412201 | Spring |
|
- | |||||
| 11 | M0283610 | Nut |
|
- | |||||
| 12 | A3314001 | Grommet |
|
- | |||||
| 14 | C5864401 | Terminal Cover |
|
- | |||||
| 15 | A4610101 | Spring |
|
- |
