01 - Compressor Parts
02 - Condenser Parts
03 - Evap Parts
04 - Exterior Parts
05 - Heater Assy Mfg. By Tuttle
06 - Interior Parts
07 - Page 2
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

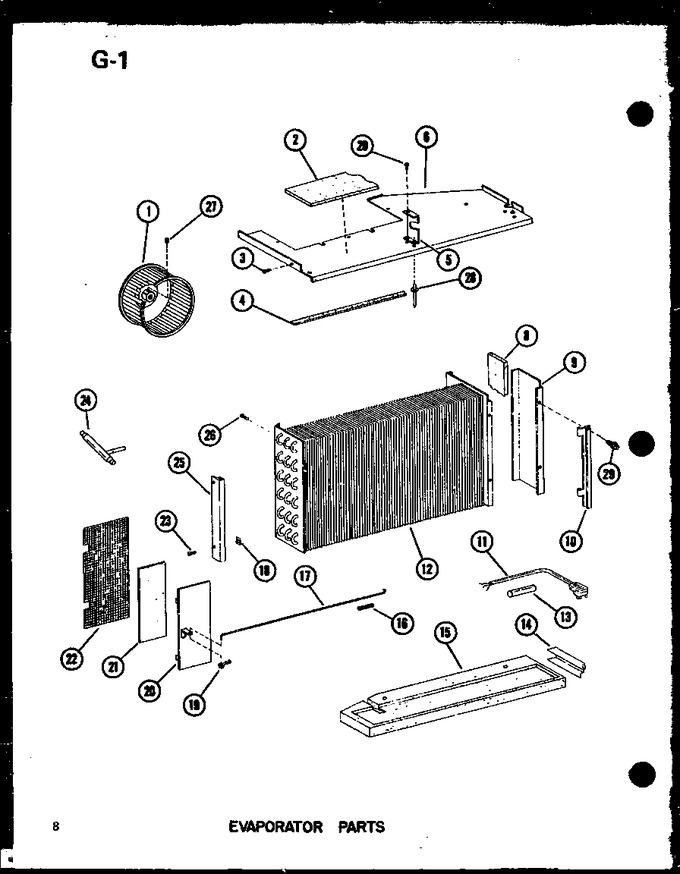

| 1 | D5352101 | Blower Wheel |
|
- | |||||
| 2 | B1263401 | Insulation |
|
- | |||||
| 3 | M0211545 | Screw |
|
- | |||||
| 4 | A3030332 | Gasket-per Ft |
|
- | |||||
| 5 | B5170403 | Spacer |
|
- | |||||
| 6 | D5466404 | Cover, Evap Pnt |
|
- | |||||
| 8 | A4622001 | Insulation |
|
- | |||||
| 9 | B5107002 | Barrier |
|
- | |||||
| 10 | B1108901 | Retainer |
|
- | |||||
| 11 | C5283104 | Cord, Power |
|
- | |||||
| 12 | D5539601 | Evaporator Assy |
|
- | |||||
| 13 | M0321016 | Sleeve |
|
- | |||||
| 14 | A4600001 | Shield,filler Block |
|
- | |||||
| 15 | D5350101 | Filler Block |
|
- | |||||
| 16 | B5109001 | Spring |
|
- | |||||
| 17 | B5106401 | Rod |
|
- | |||||
| 18 | M0288302 | Speed Nut |
|
- | |||||
| 19 | M0110901 | Clip |
|
- | |||||
| 20 | C5236701 | Damper Door |
|
- | |||||
| 21 | B5107601 | Gasket |
|
- | |||||
| 22 | A4598501 | Screen |
|
- | |||||
| 23 | M0211530 | Screw |
|
- | |||||
| 24 | B5159301 | Strainer |
|
- | |||||
| 25 | B5131902 | Retainer-filter |
|
- | |||||
| 26 | R9800670 | Screw (Replaces: M0211343) |
|
$ 10.58 | |||||
| 27 | M0210104 | Set Screw |
|
- | |||||
| 28 | A4539601 | Pop Rivet |
|
- | |||||
| 29 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 |
