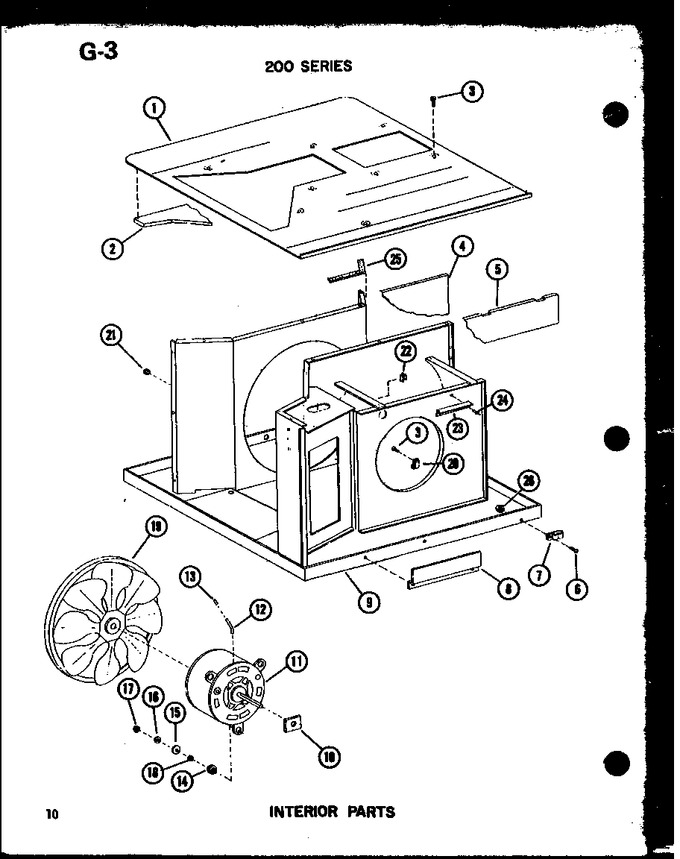

01 - Compressor Parts
02 - Condenser Parts
03 - Evap Parts
04 - Exterior Parts
05 - Heater Assy Mfg. By Tuttle
06 - Interior Parts
07 - Page 2
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D5538002 | Cover Top Pnt |
|
- | |||||
| 2 | B1106301 | Insulation |
|
- | |||||
| 3 | R9800670 | Screw (Replaces: M0211343) |
|
$ 10.58 | |||||
| 4 | C5977903 | Insulation |
|
- | |||||
| 5 | B1263501 | Insulation |
|
- | |||||
| 6 | R9800670 | Kit, Screw (Replaces: M0211030) |
|
$ 10.58 | |||||
| 7 | M0102101 | Clamp |
|
- | |||||
| 8 | A4591403 | Handle, Chasses Pntd |
|
- | |||||
| 9 | D5444718 | Base Pan Pnt |
|
- | |||||
| 10 | B5107608 | Gasket |
|
- | |||||
| 11 | C5262504 | Fan Mtr, Franklin, Cy641192/87 |
|
- | |||||
| 12 | A4597701 | Oil Tube |
|
- | |||||
| 13 | A3032601 | Rivet Plastic |
|
- | |||||
| 14 | M0500501 | Grommet |
|
- | |||||
| 15 | M0270529 | Washer |
|
- | |||||
| 16 | M0270519 | Washer |
|
- | |||||
| 17 | M0282009 | Nut |
|
$ 14.07 | |||||
| 18 | M0270504 | Washer |
|
- | |||||
| 19 | D5353102 | Fan Blade |
|
- | |||||
| 20 | M0102305 | Clamp, Tube |
|
- | |||||
| 21 | A3023301 | Grommet |
|
- | |||||
| 22 | M0110503 | Clip |
|
- | |||||
| 23 | B5106203 | Plate Reflector |
|
- | |||||
| 24 | A4539601 | Pop Rivet |
|
- | |||||
| 25 | A3030303 | Gasket (per Foot) |
|
- | |||||
| 26 | WP488130 | Nut (Replaces: M0282007) |
|
$ 7.32 |
