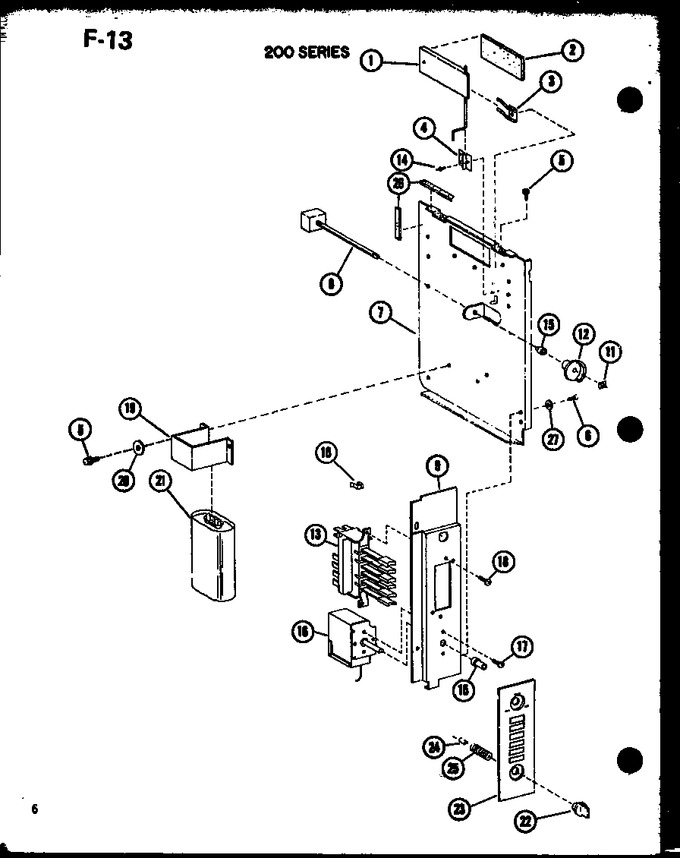

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5110702		Damper Door Pntd		Appelez-nous	-
2	B5107602		Gasket		Appelez-nous	-
3	B4778002		Spring		Appelez-nous	-
4	A4598401		Clamp		Appelez-nous	-
5	M0211545		Screw		Appelez-nous	-
6	M0211530		Screw		Appelez-nous	-
7	D5349305		Access Panel Pnt		Appelez-nous	-
8	B5109304		Damper Control		Appelez-nous	-
9	C6228801		Bracket, Controls Mounting		Appelez-nous	-
10	M0110503		Clip		Appelez-nous	-
11	M0287706		Nut		Appelez-nous	-
12	C5237901		Cam		Appelez-nous	-
13	C5940603		Switch		Appelez-nous	-
14	A4539601		Pop Rivet		Appelez-nous	-
14	C5940603		Switch		Appelez-nous	-
15	A3073601		Bushing		Appelez-nous	-
16	B1150202		Thermostat		Appelez-nous	-
17	M0232001		Screw, Thread Cut		Appelez-nous	-
17	M0232012		Screw		Appelez-nous	-
18	M0255014		Screw-machine		Appelez-nous	-
19	B5115902		Strap-capacitor Mtg		Appelez-nous	-
20	M0272403		Washer		Appelez-nous	-
21	D5711827		Cap-dual, 25/5 Mfd, 370 V Jard		Appelez-nous	-
21	D6711827		Capacitor, Dual, 25/5 Mfd. 370		Appelez-nous	-
22	D7009804		Knob		Appelez-nous	-
23	C5946706		Escutcheon		Appelez-nous	-
24	M1159101		Spring		Appelez-nous	-
25	A4663604		Spring		Appelez-nous	-
26	A4691401		Insulation		Appelez-nous	-
27	M0272402		Lock Washer		Appelez-nous	-
