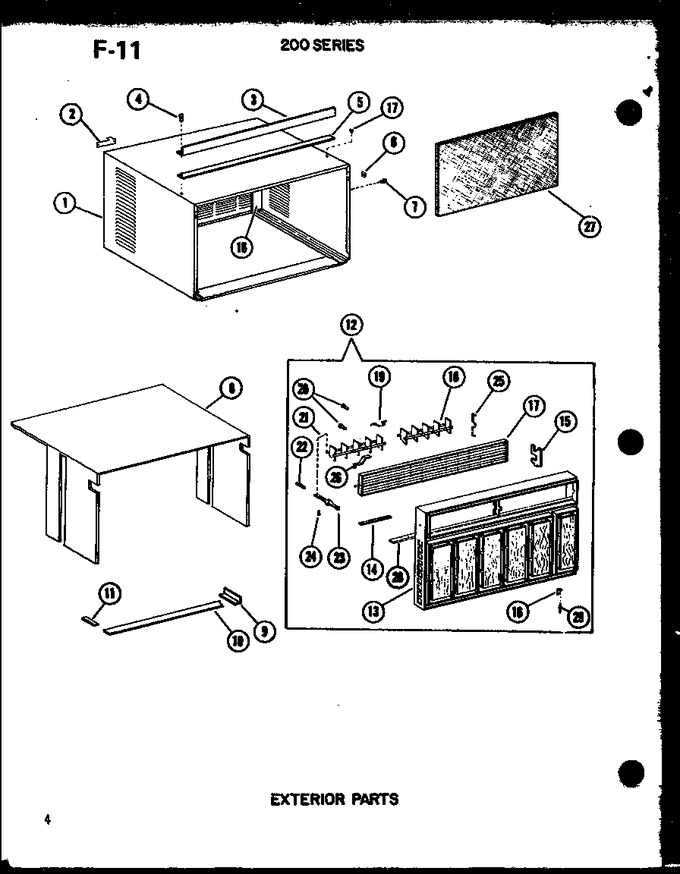

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D5378320		Outer Case Weld		Appelez-nous	-
2	B4115501		Nameplate		Appelez-nous	-
3	B1100705		Angle-top		Appelez-nous	-
4	M0211543		Screw		Appelez-nous	-
5	A3030328		Gasket (1= 1ft.)		Appelez-nous	-
6	M0288412		Speed Nut		Appelez-nous	-
7	M0234916		Thumb Screw K		Appelez-nous	-
8	C5912702		Insulation-oc		Appelez-nous	-
9	B5107615		Gasket		Appelez-nous	-
10	A3030304		Gasket, 24``		Appelez-nous	-
11	A3030319		Gasket-per Ft		Appelez-nous	-
12	D5468226		Front		Appelez-nous	-
13	D5466825		Front		Appelez-nous	-
14	A3030313		Gasket (per Foot)		Appelez-nous	-
15	B1109601		Gasket-lh		Appelez-nous	-
15	B1109602		Gasket-rh		Appelez-nous	-
15	B0109602		Gasket, Right Hand, Front Fram		Appelez-nous	-
16	A4577807		Hook, Cabinet Front Bottom To		Appelez-nous	-
17	D5396422		Louver Box		Appelez-nous	-
18	C5286601		Louvers		Appelez-nous	-
19	B5167101		Pin		Appelez-nous	-
20	M0229004		Screw		Appelez-nous	-
21	A4623801		Linkage Bar		Appelez-nous	-
22	A4624103		Spring K		Appelez-nous	-
23	B1185001		Lever K		Appelez-nous	-
24	A3339201		Pin K		Appelez-nous	-
25	A4688901		Spring		Appelez-nous	-
26	A4664503		Friction Clip		Appelez-nous	-
27	D5373801		Filter		Appelez-nous	-
28	A3030303		Gasket (per Foot)		Appelez-nous	-
29	A4539602		Pop Rivet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
