01 - Compressor Parts

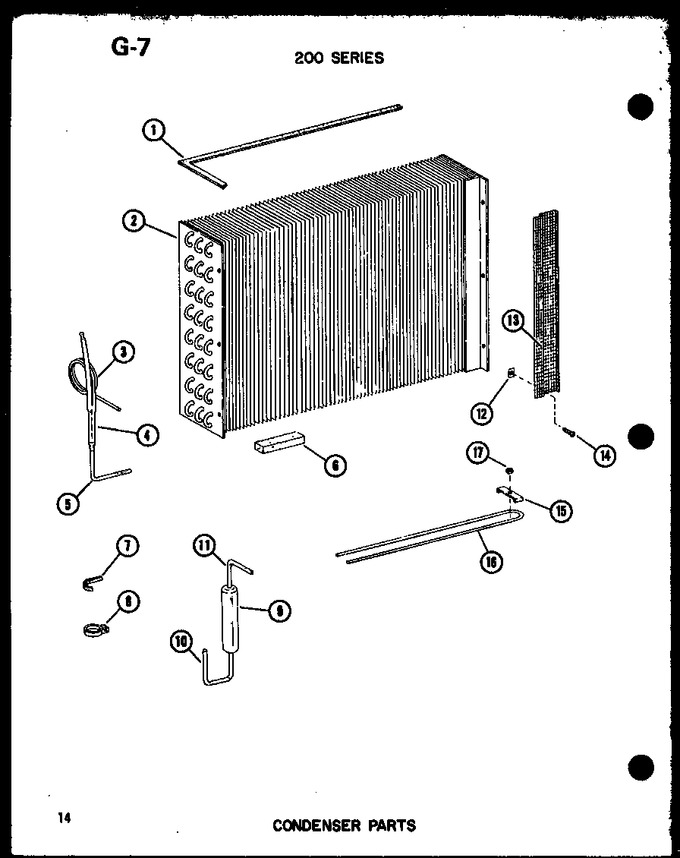

02 - Condenser Parts
03 - Evap Parts
04 - Exterior Parts
05 - Heater Assy Mfg. By Tuttle
06 - Interior Parts
07 - Page 2
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A3030332 | Gasket-per Ft |
|
- | |||||
| 2 | D5508802 | Condenser Assy |
|
- | |||||
| 3 | C5981301 | Capillary Pref0rmed |
|
- | |||||
| 4 | B5159301 | Strainer |
|
- | |||||
| 5 | A4637801 | X$x Process Tube |
|
- | |||||
| 6 | A4017201 | Seal Strip |
|
- | |||||
| 7 | B1114701 | Gasket-5.875`` |
|
- | |||||
| 8 | A4695402 | Clamp-muffler |
|
- | |||||
| 9 | C5885811 | Muffler |
|
- | |||||
| 10 | C5900410 | Tube-discharge |
|
- | |||||
| 11 | C5886105 | Tube-discharge |
|
- | |||||
| 12 | M0286201 | Speed Nut |
|
- | |||||
| 13 | B5117102 | Screen Pntd |
|
- | |||||
| 14 | M0211530 | Screw |
|
- | |||||
| 15 | A4685101 | Clamp |
|
- | |||||
| 16 | D5480101 | Tube-sub Cooler |
|
- | |||||
| 17 | Y052721 | Nut (Replaces: M0281006) |
|
$ 24.95 |
