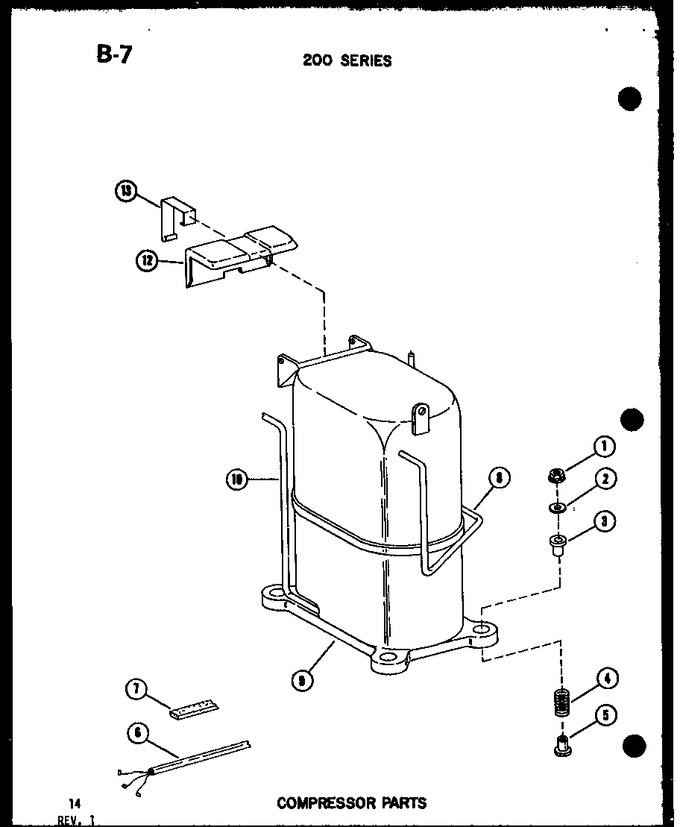

01 - Compressor Parts
02 - Condenser Parts
03 - Evap & Action Air Parts
04 - Exterior Parts
05 - Installation Kit Parts
06 - Interior Parts
07 - Ontrol Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0283610 | Nut |
|
- | |||||
| 2 | M0274008 | Washer,fibre |
|
- | |||||
| 3 | A3314001 | Grommet |
|
- | |||||
| 4 | A3338901 | Spring, Compressor |
|
- | |||||
| 5 | A3314101 | Grommet |
|
- | |||||
| 6 | C5947001 | Wiring Harness |
|
- | |||||
| 7 | A3030307 | Gasket |
|
- | |||||
| 8 | D5480201 | Tube-suction |
|
- | |||||
| 9 | D5525404 | Compressor, Copeland, Src5-020 |
|
- | |||||
| 10 | C5966602 | Discharge Tube |
|
- | |||||
| 12 | C5864401 | Terminal Cover |
|
- | |||||
| 13 | A4610101 | Spring |
|
- |
