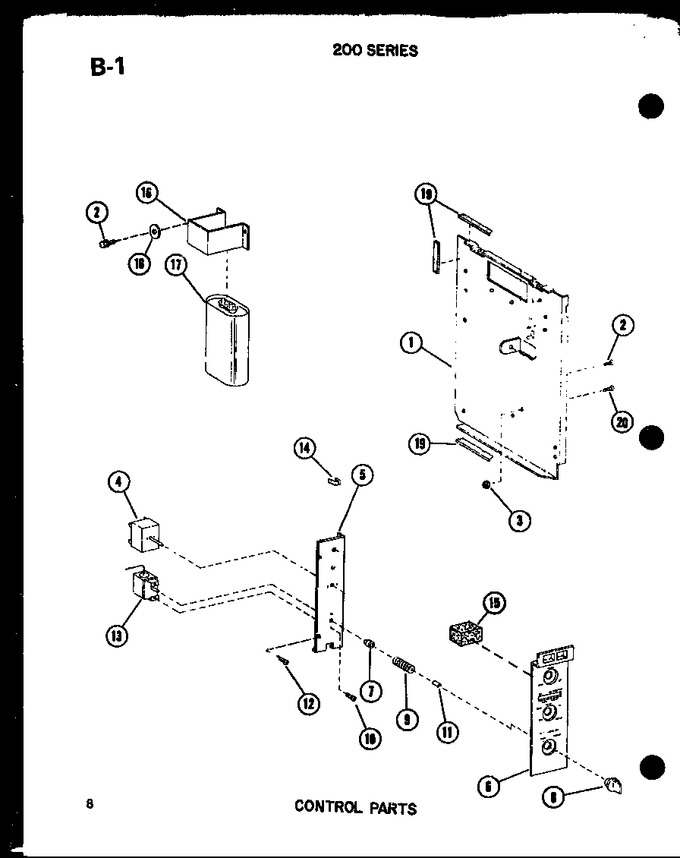

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D5349304 | Access Panel |
|
- | |||||
| 2 | M0211545 | Screw |
|
- | |||||
| 3 | WP488130 | Nut (Replaces: M0282007) |
|
$ 7.32 | |||||
| 4 | B5114403 | Switch, Rotary |
|
- | |||||
| 5 | D5349604 | Bracket-control |
|
- | |||||
| 6 | C5832917 | Escutcheon |
|
- | |||||
| 7 | A3073601 | Bushing |
|
- | |||||
| 8 | D7009803 | Knob |
|
- | |||||
| 8 | D7009804 | Knob |
|
- | |||||
| 9 | A4663604 | Spring |
|
- | |||||
| 10 | M0232012 | Screw |
|
- | |||||
| 11 | YM0115901 | Clip, Knob Mounting |
|
- | |||||
| 12 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 13 | B4763504 | Thermostat |
|
- | |||||
| 14 | M0110503 | Clip |
|
- | |||||
| 15 | A3324501 | Gasket-pad |
|
- | |||||
| 16 | B5115902 | Strap-capacitor Mtg |
|
- | |||||
| 17 | D6711832 | Cap, Dual, 370 V, 35/75 Mfd, J |
|
- | |||||
| 18 | M0272403 | Washer |
|
- | |||||
| 19 | A3030332 | Gasket-per Ft |
|
- | |||||
| 20 | M0255015 | Sems Fastner |
|
- |
