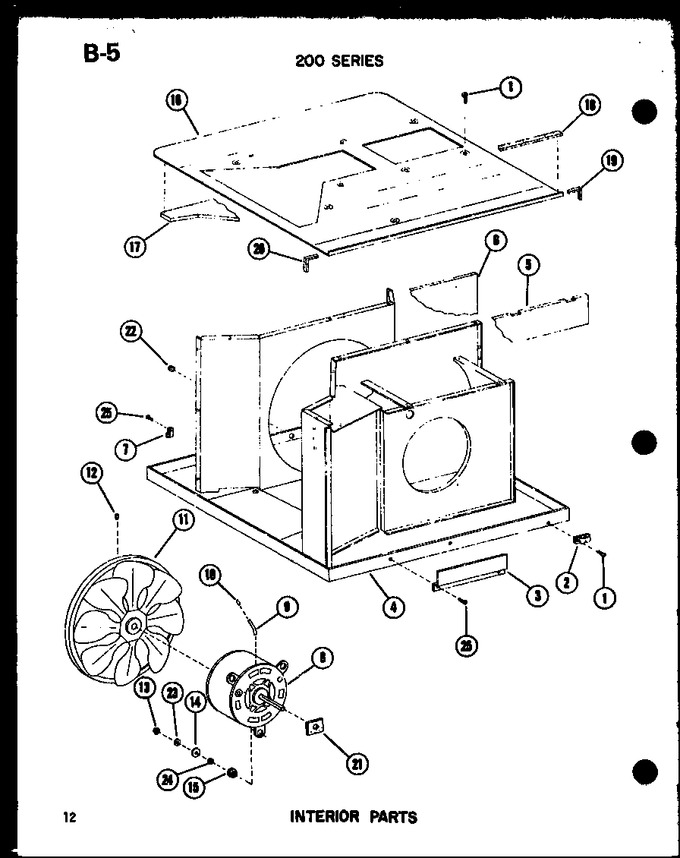

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | R9800670 | Kit, Screw (Replaces: M0211030) |
|
$ 10.58 | |||||
| 2 | M0102101 | Clamp |
|
- | |||||
| 3 | A4591402 | Handle |
|
- | |||||
| 4 | D5444823 | Base Pan Assy |
|
- | |||||
| 5 | B1263501 | Insulation |
|
- | |||||
| 6 | C5977902 | Insulation, Partition Panel |
|
- | |||||
| 7 | M0102305 | Clamp, Tube |
|
- | |||||
| 8 | C5262505 | Motor Fan |
|
- | |||||
| 9 | A4597701 | Oil Tube |
|
- | |||||
| 10 | A3032601 | Rivet Plastic |
|
- | |||||
| 11 | D5353102 | Fan Blade |
|
- | |||||
| 12 | M0210104 | Set Screw |
|
- | |||||
| 13 | M0282009 | Nut |
|
$ 14.07 | |||||
| 14 | M0270504 | Washer |
|
- | |||||
| 15 | M0500501 | Grommet |
|
- | |||||
| 16 | D5538001 | Top Cover |
|
- | |||||
| 17 | B1106301 | Insulation |
|
- | |||||
| 18 | A3030332 | Gasket-per Ft |
|
- | |||||
| 19 | B1106201 | Gasket |
|
- | |||||
| 20 | B1106202 | Gasket |
|
- | |||||
| 21 | B5107608 | Gasket |
|
- | |||||
| 22 | A3023301 | Grommet |
|
- | |||||
| 23 | M0270519 | Washer |
|
- | |||||
| 24 | M0270529 | Washer |
|
- | |||||
| 25 | R9800670 | Screw (Replaces: M0211343) |
|
$ 10.58 |
