01 - Compressor Parts

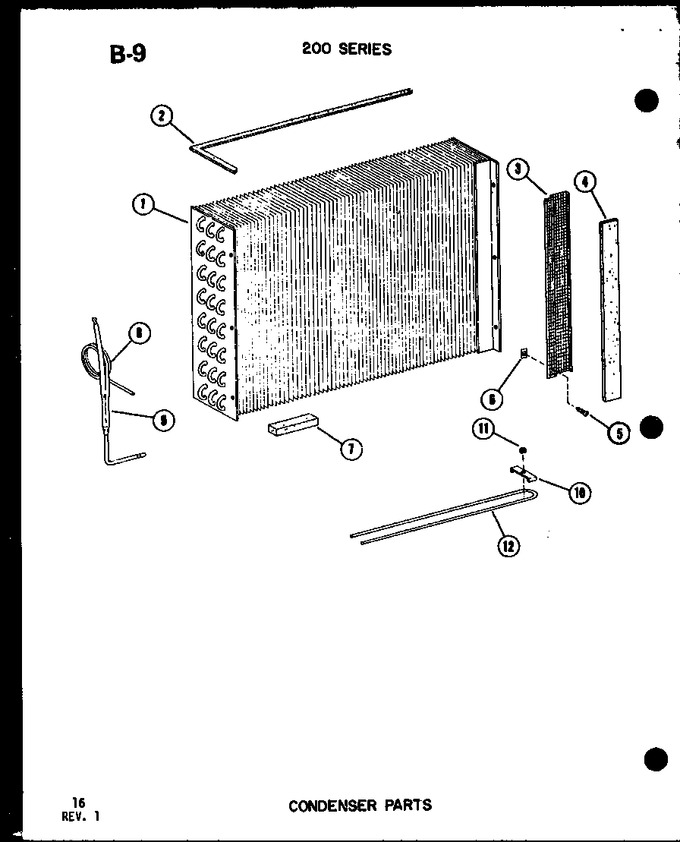

02 - Condenser Parts
03 - Evap & Action Air Parts
04 - Exterior Parts
05 - Installation Kit Parts
06 - Interior Parts
07 - Ontrol Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D5508802 | Condenser Assy |
|
- | |||||
| 2 | A3030332 | Gasket-per Ft |
|
- | |||||
| 3 | B5117101 | Screen |
|
- | |||||
| 4 | A3030307 | Gasket |
|
- | |||||
| 5 | W11233072 | Use M0214931 (Replaces: M0211531) |
|
Immediately | $ 14.72 | ||||
| 6 | M0286201 | Speed Nut |
|
- | |||||
| 7 | A4017201 | Seal Strip |
|
- | |||||
| 8 | C5982101 | Cap Tube |
|
- | |||||
| 9 | B5159301 | Strainer |
|
- | |||||
| 10 | A4685101 | Clamp |
|
- | |||||
| 11 | Y052721 | Nut (Replaces: M0281006) |
|
$ 24.95 | |||||
| 12 | D5480101 | Tube-sub Cooler |
|
- |
