01 - Compressor Parts
02 - Condenser Parts

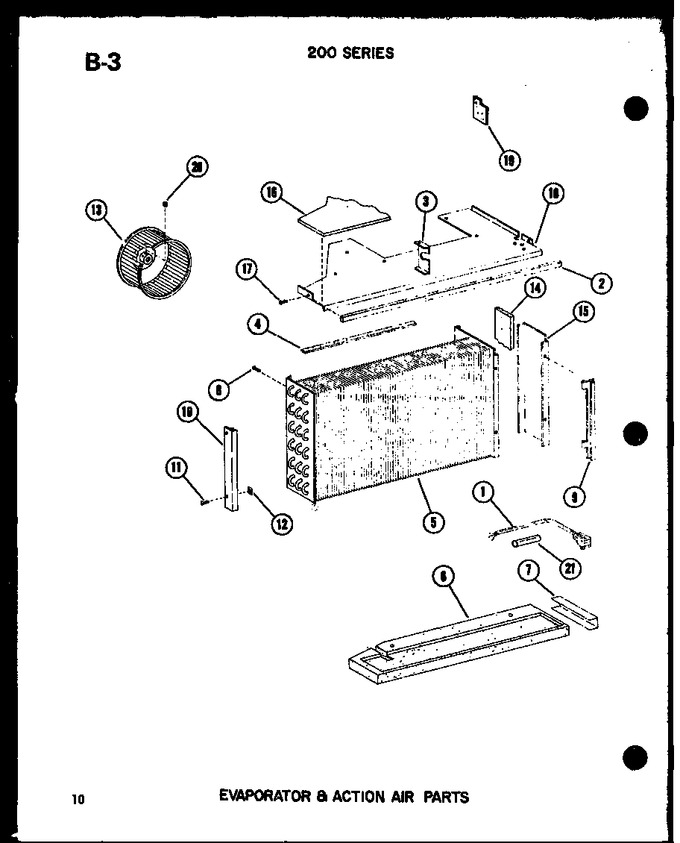

03 - Evap & Action Air Parts
04 - Exterior Parts
05 - Installation Kit Parts
06 - Interior Parts
07 - Ontrol Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C5283104 | Cord, Power |
|
- | |||||
| 2 | A3030303 | Gasket (per Foot) |
|
- | |||||
| 3 | B5170401 | Spacer,plenum |
|
- | |||||
| 4 | A3030332 | Gasket-per Ft |
|
- | |||||
| 5 | D5539601 | Evaporator Assy |
|
- | |||||
| 6 | D5350101 | Filler Block |
|
- | |||||
| 7 | A4600001 | Shield,filler Block |
|
- | |||||
| 8 | R9800670 | Screw (Replaces: M0211343) |
|
$ 10.58 | |||||
| 9 | B1108901 | Retainer |
|
- | |||||
| 10 | B5131902 | Retainer-filter |
|
- | |||||
| 11 | M0211530 | Screw |
|
- | |||||
| 12 | M0288302 | Speed Nut |
|
- | |||||
| 13 | D5352102 | Blower Wheel, Evaporator |
|
- | |||||
| 14 | A4622001 | Insulation |
|
- | |||||
| 15 | B5107002 | Barrier |
|
- | |||||
| 16 | B1263401 | Insulation |
|
- | |||||
| 17 | M0211545 | Screw |
|
- | |||||
| 18 | D5466403 | Evaporator Cover |
|
- | |||||
| 19 | A4691401 | Insulation |
|
- | |||||
| 20 | M0210104 | Set Screw |
|
- | |||||
| 21 | M0321016 | Sleeve |
|
- |
