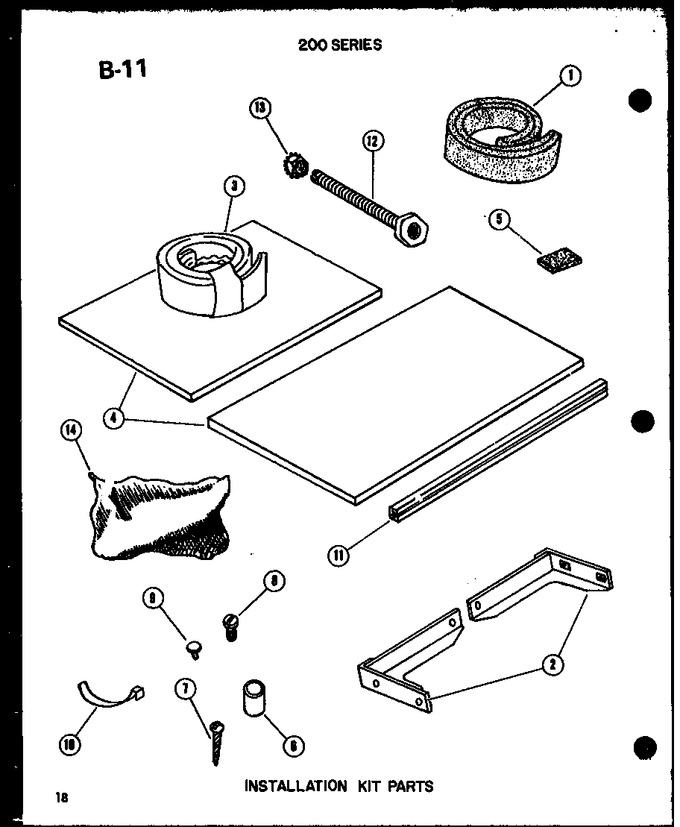

05 - Installation Kit Parts
06 - Interior Parts
07 - Ontrol Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A4660601 | Gasket, Sash Seal Strip |
|
- | |||||
| 2 | C5872102 | Weldment, Angle Support, L.h. |
|
- | |||||
| 2 | C5872101 | Weldment, Angle Support, R.h. |
|
- | |||||
| 3 | B1108301 | Gasket |
|
- | |||||
| 4 | A4607701 | Window Board |
|
- | |||||
| 5 | A4684201 | Gasket-polyethylene |
|
- | |||||
| 6 | A4065501 | Spacer K |
|
- | |||||
| 7 | M0212062 | Screw |
|
- | |||||
| 8 | M0206557 | Screw |
|
- | |||||
| 9 | M0310312 | Plug |
|
- | |||||
| 10 | B1100601 | Spring |
|
- | |||||
| 11 | B4764402 | Gasket |
|
- | |||||
| 12 | M0200003 | Screw Adjusting |
|
- | |||||
| 13 | M0282019 | Nut-keps |
|
- | |||||
| 14 | B1139001 | Accessory Kit Q |
|
- |
