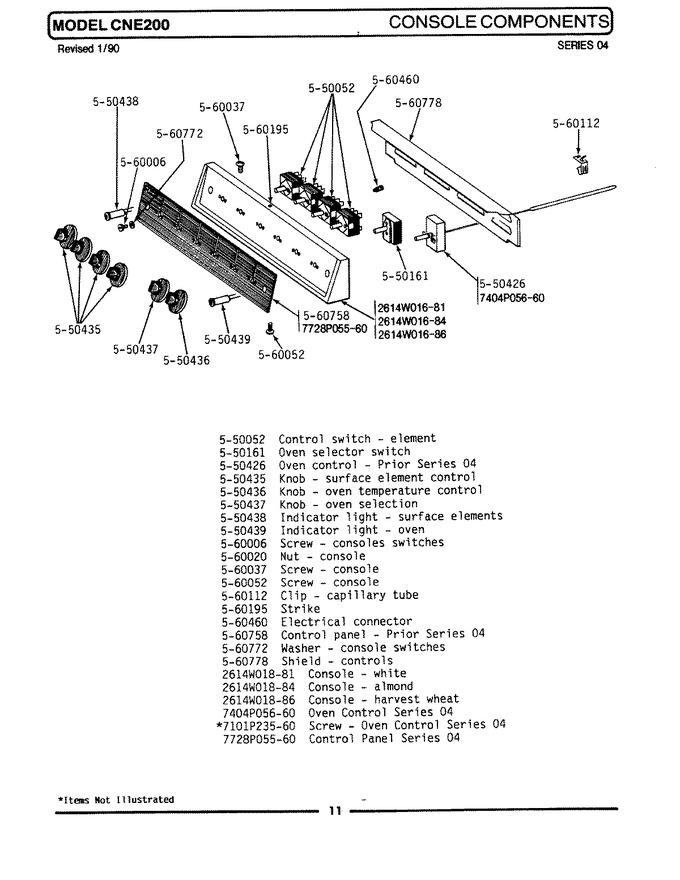

01 - Control Panel
02 - Drawer Assembly
03 - Front View - Panels
04 - Oven Assembly
05 - Oven Door Assembly
06 - Rear View-panels
07 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 550052 | Control Switch-heat Element |
|
- | |||||
| 2 | 550161 | Control Switch-oven Selecto |
|
- | |||||
| 3 | 550426 | Oven Temperature Control |
|
- | |||||
| 3 | 7404P056-60 | Thermostat | 4 |
|
- | ||||
| 4 | 550435 | Knob For Surface Element |
|
- | |||||
| 5 | 550436 | Knob For Oven Temperature |
|
- | |||||
| 6 | 550437 | Knob For Oven Selection |
|
- | |||||
| 7 | 550438 | Indicator Light - Elements |
|
- | |||||
| 8 | 550439 | Indicator Light - Oven |
|
- | |||||
| 9 | WP488234 | Screw (Replaces: 560006) |
|
$ 6.37 | |||||
| 11 | WP7101P126-60 | Screw (Replaces: 560037) |
|
Immediately | $ 7.52 | ||||
| 12 | 560052 | Screw |
|
- | |||||
| 13 | 560112 | Clip For Capillary Tube |
|
- | |||||
| 14 | 560195 | Strike For Top Assembly |
|
- | |||||
| 15 | 560460 | Wire Connector |
|
- | |||||
| 17 | 560772 | Washer |
|
- | |||||
| 18 | 560778 | Shield For Controls |
|
- | |||||
| NI | 7101P235-60 | Screw | 4 |
|
- | ||||
| NI | 560020 | Nut-burner Box |
|
- | |||||
| NI | 7728P055-60 | Trim, Control Panel | 4 |
|
- | ||||
| NI | 560758 | Inlay For Manifold |
|
- | |||||
| NI | 560781 | Manifold Panel-white |
|
- | |||||
| NI | 560781L | Manifold Panel-almond |
|
- | |||||
| NI | 560781M | Manifold Panel-harvest Whea |
|
- |
