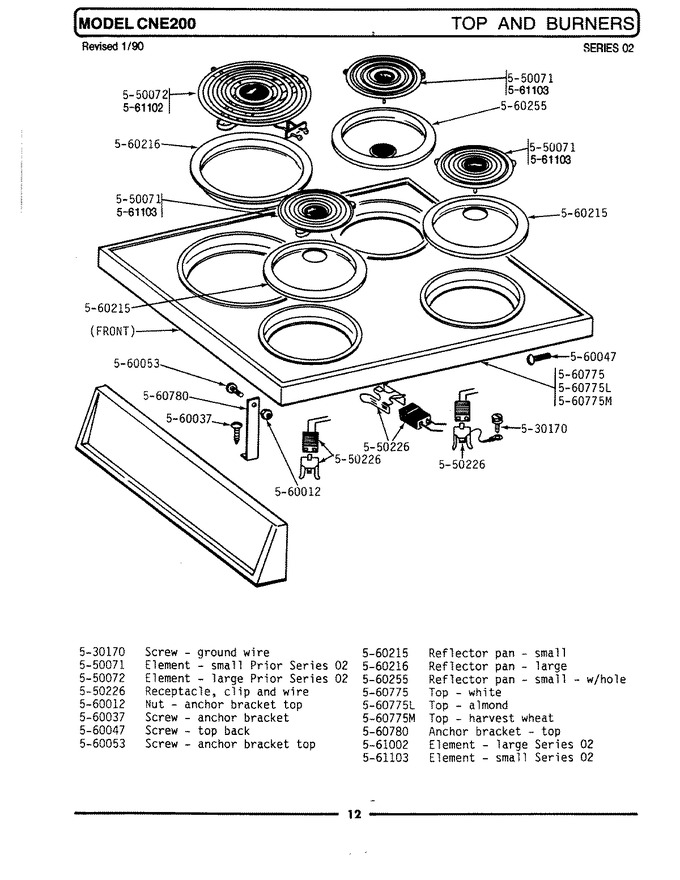

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	530170		Screw		Appelez-nous	-
2	WPY04100165		Surface Element-small   (Replaces: 550071)			Immediately	$ 59.77
2	WP660532		Element, Surface   (Replaces: 561103)	2		Immediately	$ 45.10
3	WPY04100166		Surface Element-large   (Replaces: 550072)			Immediately	$ 47.21
3	561002		Body, Carton 30``	2	Appelez-nous	-
4	330031		Receptacle, Clip, Wire Assm   (Replaces: 550226)			Immediately	$ 17.93
5	560012		Nut-clock To Support		Appelez-nous	-
6	WP7101P126-60		Screw   (Replaces: 560037)			Immediately	$ 7.52
7	D516510WP		Screw-handle To Door   (Replaces: 560047)				$ 309.95
8	560053		Screw		Appelez-nous	-
9	WPW10196406		Reflector Pan-small   (Replaces: 560215)			Immediately	$ 12.42
10	WPW10196405		Reflector Pan-large   (Replaces: 560216)			Immediately	$ 15.56
11	WPW10196406		Reflector Pan With Hole   (Replaces: 560255)			Immediately	$ 12.42
12	560775		Top Assembly-white		Appelez-nous	-
13	560775L		Top Assembly-almond		Appelez-nous	-
14	560775M		Top Assembly-harvest Wheat		Appelez-nous	-
15	560780		Anchor Bracket		Appelez-nous	-
