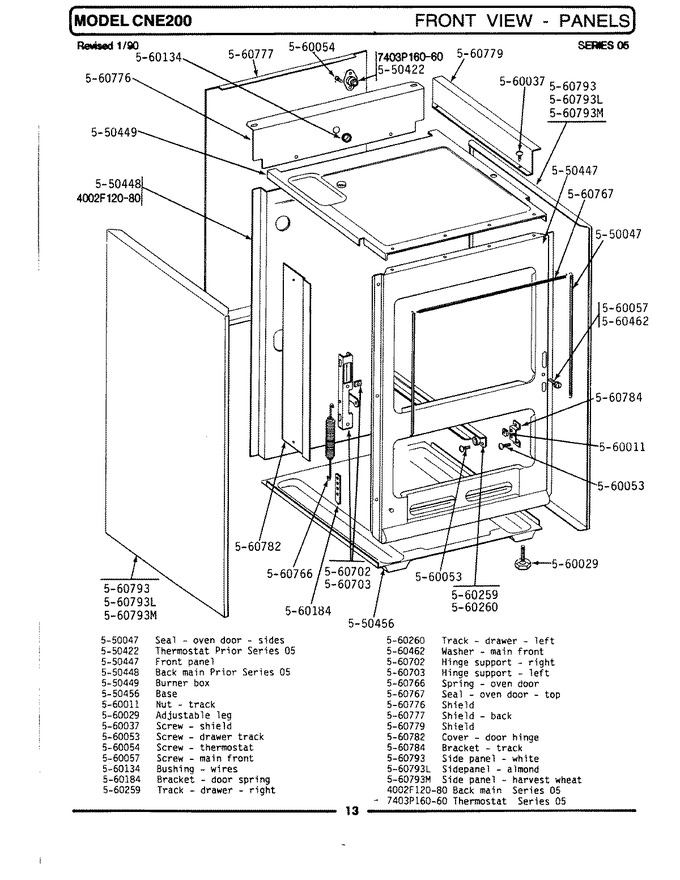

03 - Front View - Panels


04 - Oven Assembly


05 - Oven Door Assembly


06 - Rear View-panels


07 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	550047		Seal For Oven Door		Appelez-nous	-
2	7403P160-60		Switch, Hi-limit	5	Appelez-nous	-
2	550422		Thermostat - Disc Type		Appelez-nous	-
3	550447		Front Panel		Appelez-nous	-
4	4002F120-80		Back Main	5	Appelez-nous	-
4	550448		Back Panel - Main		Appelez-nous	-
5	550449		Burner Box		Appelez-nous	-
6	550456		Bottom Assembly		Appelez-nous	-
7	M0282009		Nut   (Replaces: 560011)				$ 12.66
8	560029		Adjustable Leg		Appelez-nous	-
9	WP7101P126-60		Screw   (Replaces: 560037)			Immediately	$ 7.52
10	560053		Screw		Appelez-nous	-
11	560054		Screw		Appelez-nous	-
12	560057		Screw		Appelez-nous	-
13	560134		Bushing		Appelez-nous	-
14	560184		Bracket For Door Spring		Appelez-nous	-
15	560259		Track For Drawer-right		Appelez-nous	-
16	560260		Track For Drawer-left		Appelez-nous	-
17	560462		Washer		Appelez-nous	-
18	560702		Support For Hinge - Left		Appelez-nous	-
19	560703		Support For Hinge - Right		Appelez-nous	-
20	560766		Spring For Door		Appelez-nous	-
23	Y560767		Seal For Oven Door - Top		Appelez-nous	-
24	560776		Shield		Appelez-nous	-
25	560777		Shield - Back		Appelez-nous	-
26	Y560779		Shield For Wires		Appelez-nous	-
27	560782		Cover For Door Hinge		Appelez-nous	-
28	560784		Bracket For Track		Appelez-nous	-
29	560793		Side Panel-white		Appelez-nous	-
30	560793L		Side Panel-almond		Appelez-nous	-
31	560793M		Side Panel-harvest Wheat		Appelez-nous	-
NI	Y560767		Seal For Oven Door - Top		Appelez-nous	-
NI	560776		Shield		Appelez-nous	-
