Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP74010761 Baking Element   (Replaces: 550429) Special Order $ 114.37

2 550430 Broil Element Appelez-nous -
3 550442 Rack For Oven Appelez-nous -
4 M0282009 Nut   (Replaces: 560011) Special Order $ 12.66

5 WP7101P126-60 Screw   (Replaces: 560037) In-Stock Immediately $ 7.52

6 560052 Screw Appelez-nous -
7 560094 Insulation Appelez-nous -
8 560624 Tray For Broiler Pan Appelez-nous -
9 4396923 Pan For Broiler   (Replaces: 560626) In-Stock Immediately $ 54.64

10 560759 Insulation - Back Appelez-nous -
11 560774 Oven Bottom Appelez-nous -
12 560785 Vent Pipe Appelez-nous -
13 560813 Support For Broil Element Appelez-nous -
14 560836 Support Plate F/insulation Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

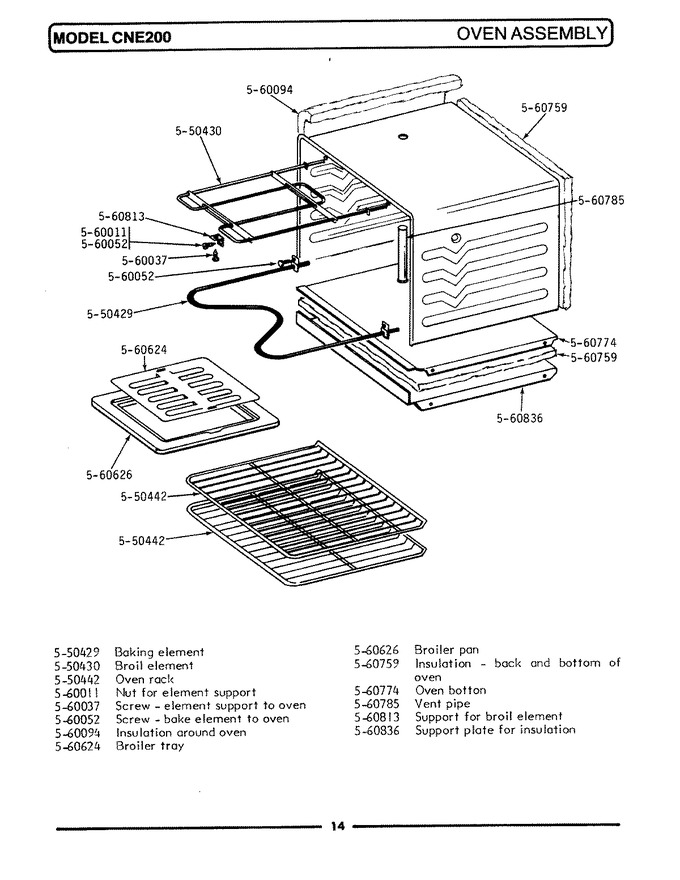

Diagram for GCNE200
