01 - Control Panel
02 - Drawer Assembly
03 - Front View - Panels
04 - Oven Assembly
05 - Oven Door Assembly
06 - Rear View-panels
07 - Top Assembly
SELECT A DIAGRAM
New Model Search:

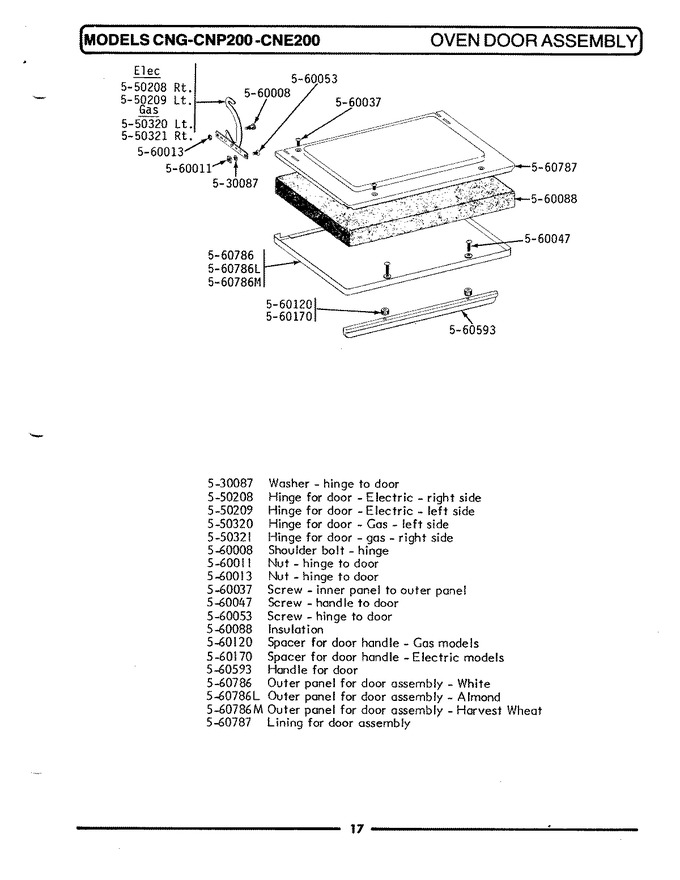

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 530087 | Lock Washer |
|
- | |||||
| 2 | 550208 | Hinge Support-right |
|
- | |||||
| 3 | 550209 | Hinge Support-left |
|
- | |||||
| 4 | 550320 | Hinge For Door-left |
|
- | |||||
| 5 | 550321 | Hinge For Door-right |
|
- | |||||
| 6 | 560008 | Bolt |
|
- | |||||
| 7 | M0282009 | Nut (Replaces: 560011) |
|
$ 12.66 | |||||
| 8 | 560013 | Nut |
|
- | |||||
| 9 | WP7101P126-60 | Screw (Replaces: 560037) |
|
Immediately | $ 7.52 | ||||
| 10 | D516510WP | Screw-handle To Door (Replaces: 560047) |
|
$ 309.95 | |||||
| 11 | 560053 | Screw |
|
- | |||||
| 12 | 560088 | Insulation |
|
- | |||||
| 13 | 560120 | Spacer |
|
- | |||||
| 14 | 560170 | Spacer-oven Door Handle |
|
- | |||||
| 15 | 560593 | Handle For Storage Drawer |
|
- | |||||
| 16 | Y560786 | Outer Panel-white |
|
- | |||||
| 17 | 560786L | Outer Panel-almond |
|
- | |||||
| 18 | 560786M | Outer Panel-harvest Wheat |
|
- | |||||
| 19 | Y560787 | Lining For Door |
|
- |
