View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel
02 - Drawer Assembly
03 - Front View - Panels
04 - Oven Assembly
05 - Oven Door Assembly
06 - Rear View-panels

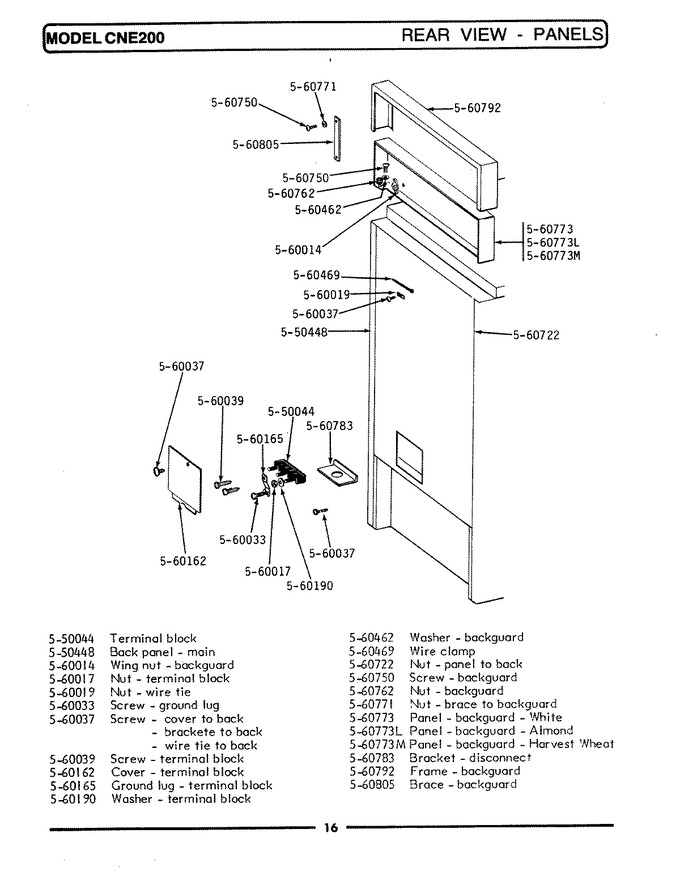

07 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10245259 | Terminal Block (Replaces: 550044) |
|
Immediately | $ 31.65 | ||||
| 2 | 550448 | Back Panel - Main |
|
- | |||||
| 3 | 560014 | Nut |
|
- | |||||
| 4 | 560017 | Nut |
|
- | |||||
| 5 | 560019 | Nut |
|
- | |||||
| 6 | W11233072 | Screw (Replaces: 560033) |
|
Immediately | $ 13.25 | ||||
| 7 | WP7101P126-60 | Screw (Replaces: 560037) |
|
Immediately | $ 7.52 | ||||
| 8 | 560039 | Screw-inner Door Lining |
|
- | |||||
| 9 | 560162 | Cover-terminal Block |
|
- | |||||
| 10 | 560165 | Ground Lug |
|
- | |||||
| 11 | 560190 | Washer |
|
- | |||||
| 12 | 560462 | Washer |
|
- | |||||
| 13 | 560722 | Nut |
|
- | |||||
| 14 | WP3400074 | Screw (Replaces: 560750) |
|
Immediately | $ 6.80 | ||||
| 15 | 560762 | Nut |
|
- | |||||
| 16 | 560771 | Washer |
|
- | |||||
| 17 | 560773 | Console-white |
|
- | |||||
| 18 | 560773L | Console-almond |
|
- | |||||
| 19 | 560773M | Console-harvest Wheat |
|
- | |||||
| 20 | 560783 | Bracket - Disconnect |
|
- | |||||
| 21 | 560792 | Frame For Console |
|
- | |||||
| 22 | 560805 | Bracket For Console |
|
- |
