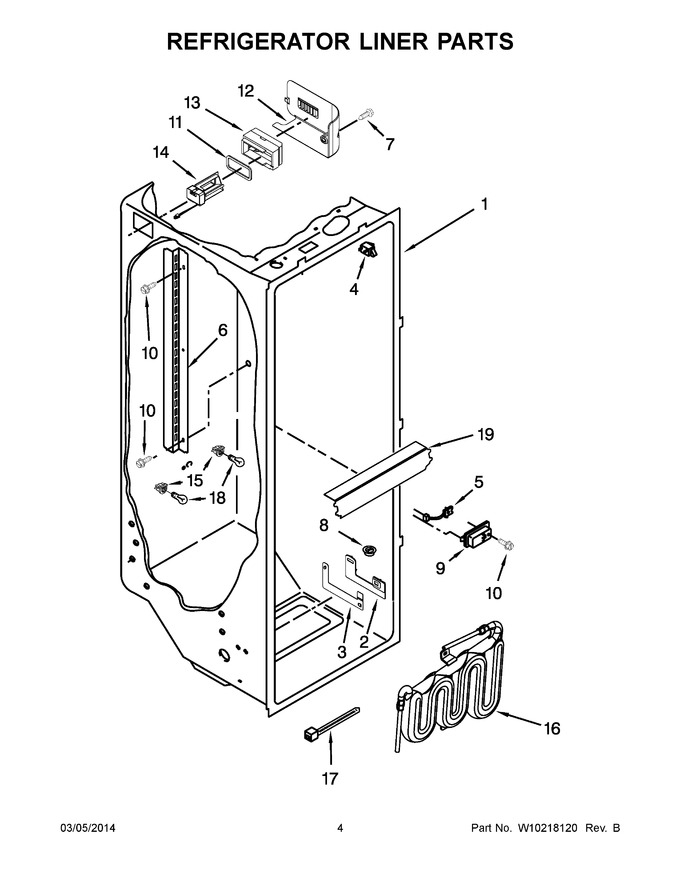

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 2223524 | Escutcheon, Meat Pan Control |
|
- | |||||
| 3 | 2223339 | Slide Meat Pan Control |
|
- | |||||
| 4 | W11384469 | Switch, Rocker Arm (refrigerator) (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 5 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 6 | 2319866 | Ladder, Shelf |
|
$ 22.16 | |||||
| 7 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 8 | 2171846 | Valve, Release |
|
$ 18.99 | |||||
| 9 | WP2317844 | Cover, Thermistor (Replaces: 2317105) |
|
$ 11.38 | |||||
| 10 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 11 | 2304597 | Gasket, Air Baffle |
|
$ 103.97 | |||||
| 12 | 2223403 | Cover, Air Diffuser |
|
$ 72.16 | |||||
| 13 | 2224076 | Assembly, Air Diffuser |
|
$ 43.38 | |||||
| 14 | WP2220377 | Baffle, Air (Replaces: W10185224) |
|
Immediately | $ 381.05 | ||||
| 15 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 16 | WPW10276792 | Reservoir, Water (Replaces: 2307107) |
|
$ 144.45 | |||||
| 17 | WP2205813 | Tie, Wire (Replaces: 2205813) |
|
$ 8.11 | |||||
| 18 | W11679940 | Bulb, Light (Replaces: W10194422) |
|
Immediately | $ 11.30 | ||||
| 19 | 2223663 | Lens, Light |
|
$ 107.10 |
