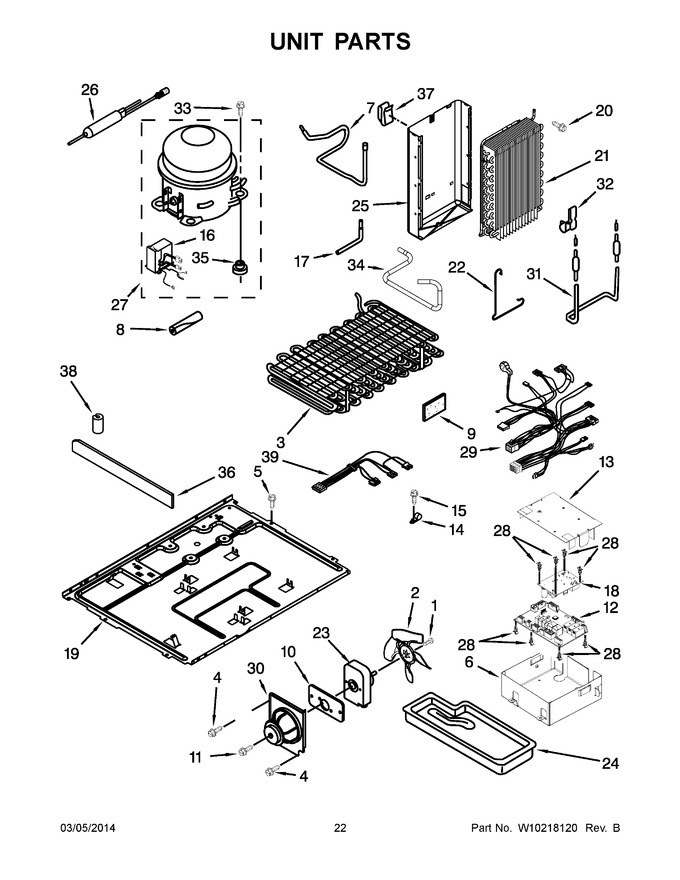

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488234		Screw   (Replaces: 777070)				$ 7.08
2	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 99.82
3	W10131059		Assembly, Condenser		Appelez-nous	-
4	WPW10171469		Screw   (Replaces: 8533859)			Immediately	$ 11.61
5	3400524		Screw (white)				$ 13.28
6	2224844		Housing, Control Board		Appelez-nous	-
7	W10528579		Tube Suction   (Replaces: 2223351)				$ 275.31
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
9	W11553819		Sealer, Insulation   (Replaces: 2169104)			Immediately	$ 14.77
10	W10165989		Plate, Mounting		Appelez-nous	-
11	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
12	WPW10356040		Control, Electronic   (Replaces: W10120824)			Immediately	$ 322.82
13	W10180645		Cover, Control Box		Appelez-nous	-
14	WP1115374		Clip, Wire   (Replaces: 1115374)				$ 8.14
15	WPW10141625		Screw   (Replaces: 488649)				$ 22.22
16	W10893917		Assembly, Inverter Box   (Replaces: W10186719)				$ 470.79
17	2325479		Tube, Process		Appelez-nous	-
18	WPW10209635		Control, Electronic   (Replaces: W10209635)				$ 351.61
19	2306932		Baseplate				$ 158.02
20	WP489478		Screw   (Replaces: 489478)				$ 8.18
21	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 381.49
22	2161324		Clip, Defrost Heater		Appelez-nous	-
23	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 124.18
24	2223398		Tray, Evaporator		Appelez-nous	-
25	2224022		Shield, Heat		Appelez-nous	-
26	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 30.78
27	8201675		Compressor   (Replaces: W10186723)			Immediately	$ 605.90
28	2223800		Spacer, Circuit Board				$ 17.50
29	W10129751		Harness, Main Control				$ 170.68
30	2224024		Bracket, Fan Mounting				$ 56.36
31	2323199		Heater, Defrost				$ 127.42
32	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
33	876811		Screw   (Replaces: 489373)				$ 7.79
34	W10181542		Tube, Discharge		Appelez-nous	-
35	WP4387558		Grommet   (Replaces: 4387558)				$ 7.30
36	2223394		Extension, Air Baffle		Appelez-nous	-
37	2155547		Clip, Heat Shield		Appelez-nous	-
38	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 8.09
39	2187737		Assembly, Unit Wire				$ 164.84
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access Ÿ``)				$ 137.25
NI	876764		Valve, Access			Immediately	$ 95.92
NI	N/P		Refrigerant Charge (6.00 Oz. (r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (Œ``)   (Replaces: 978025)			Immediately	$ 110.51
NI	SF5516		Valve, Access   (Replaces: 978026)			Immediately	$ 18.94
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access		Appelez-nous	-
