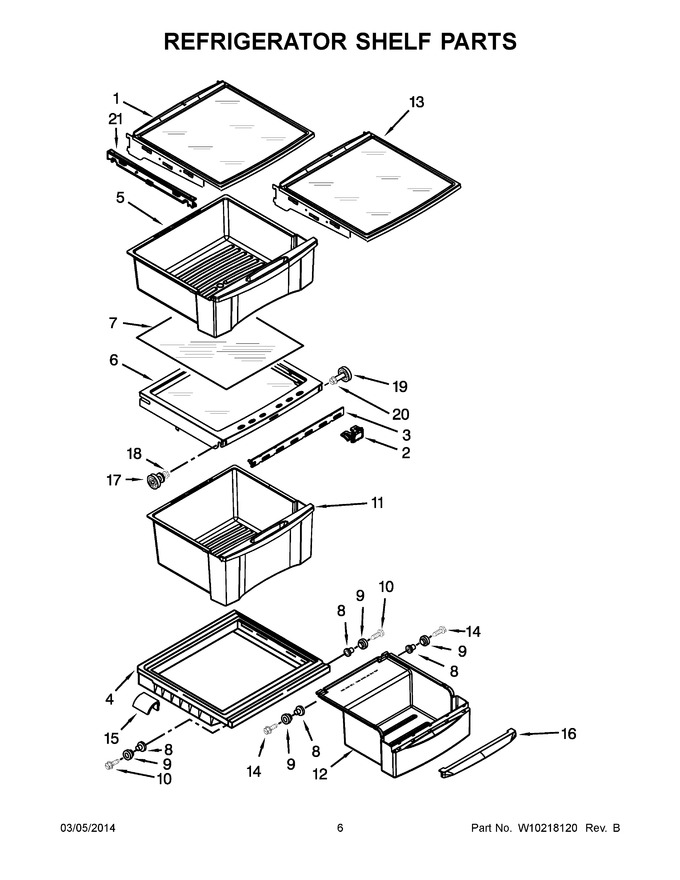

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2223288		Assembly, Pan Shelf   (Replaces: 2223288)				$ 417.90
2	2223309		Knob, Humidity Control				$ 34.60
3	2223308		Slide, Humidity Control				$ 77.01
4	WPW10270150		Assembly, Meat Cover   (Replaces: 2203027)				$ 359.57
5	2223261		Assembly, Snack Pan		Appelez-nous	-
6	2223307		Cover, Crisper				$ 77.55
7	2223591		Glass, Crisper Cover				$ 88.38
8	2174478		Eyelet, Roller				$ 5.70
9	2188212		Roller		Appelez-nous	-
10	WPW10272364		Screw (stainless)   (Replaces: 489211)			Immediately	$ 11.36
11	WPW10233488		Assembly, Crisper Pan   (Replaces: 2223235)				$ 201.65
12	2223526		Assembly, Meat Pan		Appelez-nous	-
13	W10235943		Assembly, Shelf And Frame   (Replaces: 2224059)				$ 353.55
14	WP489261		Screw (stainless)   (Replaces: 489261)				$ 8.33
15	2223487		Deflector				$ 83.68
16	2203029		Handle, Meat Pan				$ 85.47
17	W11223328		Assembly, Shelf Stud   (Replaces: 2196485)			Immediately	$ 14.77
18	WP3-24004-109		Screw   (Replaces: 3400894)				$ 9.14
19	WP2196483		Assembly, Shelf Stud   (Replaces: 2196483)				$ 10.87
20	WP3400806		Screw   (Replaces: 8281158)				$ 8.10
21	WP2223320		Slide, Pan   (Replaces: 2223320)			Immediately	$ 25.05
