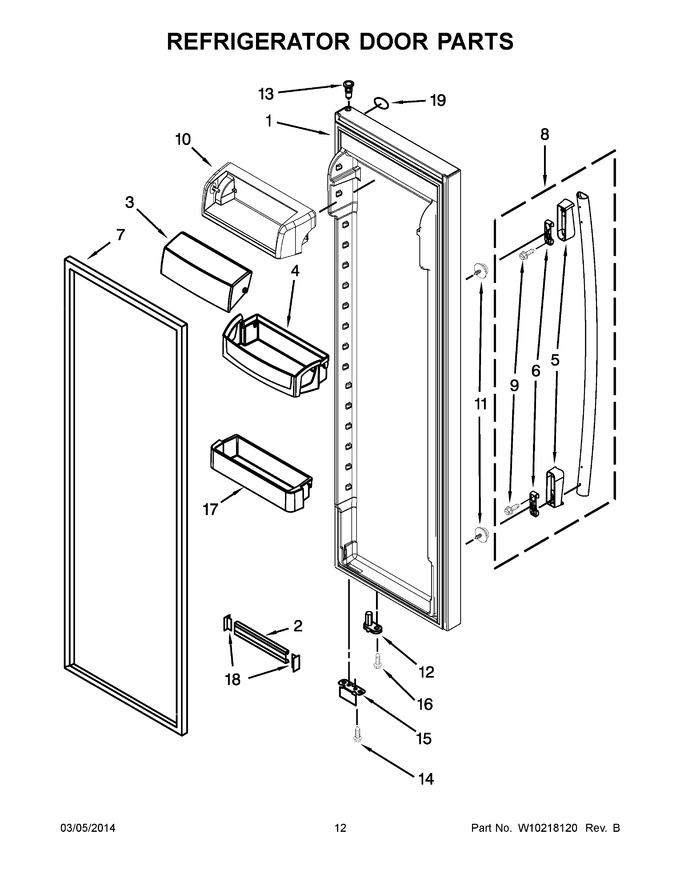

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10172106		Refrigerator Door (includes No.7) (stainless)		Appelez-nous	-
1	W10168249		Refrigerator Door (includes No.7) (black)		Appelez-nous	-
1	W10188145		Refrigerator Door (includes No.7) (biscuit)		Appelez-nous	-
1	W10168248		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
1	W10168250		Refrigerator Door (includes No.7) (monochromatic Stainless)		Appelez-nous	-
1	W10168251		Refrigerator Door (includes No.7) (monochromatic Satina)		Appelez-nous	-
2	2203087K		Trim, Shelf		Appelez-nous	-
3	2255421		Door, Dairy				$ 34.76
4	2223239K		Bin, Door		Appelez-nous	-
5	W10152864		Endcap, Handle (nickel)		Appelez-nous	-
5	W10127813		Endcap, Handle (white)				$ 82.43
5	W10127814		Endcap, Handle (black)		Appelez-nous	-
5	W10127815		Endcap, Handle (biscuit)		Appelez-nous	-
6	WP2255411		Clip, Handle Mount   (Replaces: 2255411)				$ 36.55
7	2223911		Gasket, Door (black)		Appelez-nous	-
7	2223841		Gasket, Door (mist Beige)		Appelez-nous	-
8	W10210942A		Assembly, Handle (white)   (Replaces: W10127803)				$ 129.53
8	W10210942A		Assembly, Handle (black)   (Replaces: W10127804)				$ 129.53
8	W10210944A		Assembly, Handle (biscuit)   (Replaces: W10127805)		Appelez-nous	-
8	W10273556		Assembly, Handle (stainless)   (Replaces: W10152865)				$ 294.85
9	W10267047		Assembly, Handle (screw)   (Replaces: W10201588)				$ 13.47
10	2223879		Compartment, Dairy				$ 40.49
11	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 9.65
12	2307048		Closer, Door		Appelez-nous	-
13	WP2182181		Thimble-top   (Replaces: 2308091)				$ 8.15
14	WP489483		Screw   (Replaces: 489420)				$ 11.41
15	W10215319		Bracket, Door Stop (silver)		Appelez-nous	-
15	W10215323		Bracket, Door Stop (black)		Appelez-nous	-
16	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
17	WP2224173		Bin, Shallow Door   (Replaces: 2224173)				$ 91.69
18	WP2156006		Plug, Trim   (Replaces: 2156006K)			Immediately	$ 12.79
19	2220214		Nameplate				$ 32.43
