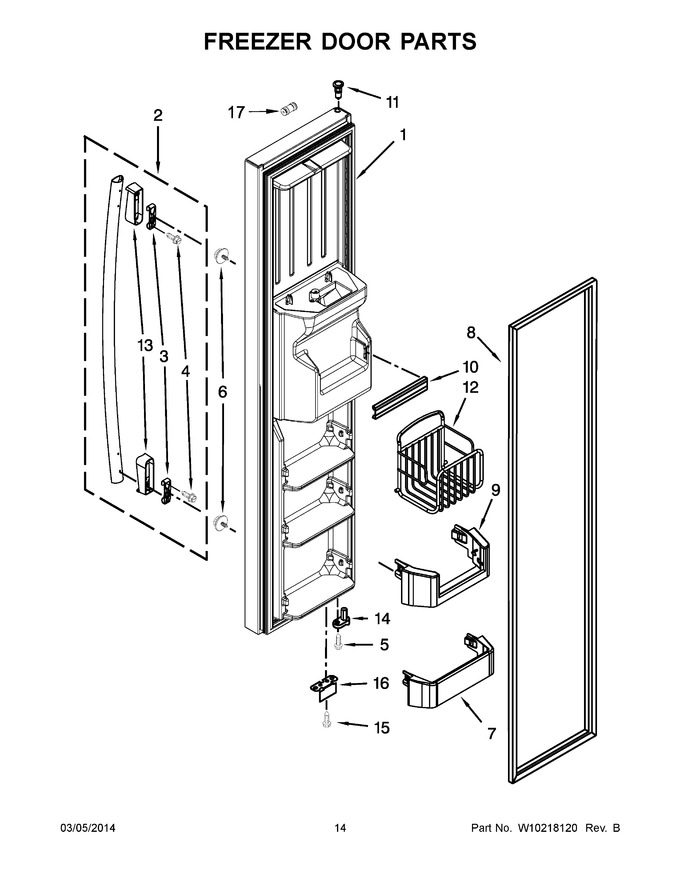

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10189349		Freezer Door (includes No.8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
1	W10189347		Freezer Door (includes No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10189348		Freezer Door (includes No.8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	W10189346		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10189351		Freezer Door (includes No.8 And Dispenser Front Parts) (monochromatic Stainless)		Appelez-nous	-
1	W10189350		Freezer Door (includes No.8 And Dispenser Front Parts) (monochromatic Satina)		Appelez-nous	-
2	W10210942A		Assembly, Handle (white)   (Replaces: W10127803)				$ 129.53
2	W10210942A		Assembly, Handle (black)   (Replaces: W10127804)				$ 129.53
2	W10210944A		Assembly, Handle (biscuit)   (Replaces: W10127805)		Appelez-nous	-
2	W10273556		Assembly, Handle (stainless)   (Replaces: W10152865)				$ 294.85
3	WP2255411		Clip, Handle Mount   (Replaces: 2255411)				$ 36.55
4	W10267047		Screw   (Replaces: W10201588)				$ 13.47
5	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
6	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 9.65
7	WP2171157		Trivet   (Replaces: 2171157K)				$ 63.70
8	2223850		Gasket, Door (mist Beige)		Appelez-nous	-
8	2223912		Gasket, Door (black)		Appelez-nous	-
9	2223334		Trivet				$ 25.46
10	WPW10307490		Trim, Shelf   (Replaces: 2219982)			Immediately	$ 24.27
11	WP2182181		Thimble-top   (Replaces: 2308091)				$ 8.15
12	2304309		Basket, Tilt Out				$ 77.01
13	W10152864		Endcap, Handle (nickel)		Appelez-nous	-
13	W10127814		Endcap, Handle (black)		Appelez-nous	-
13	W10127813		Endcap, Handle (white)				$ 82.43
13	W10127815		Endcap, Handle (biscuit)		Appelez-nous	-
14	W10132977		Closer, Door				$ 12.16
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	W10215319		Bracket, Door Stop (silver)		Appelez-nous	-
16	W10215323		Bracket, Door Stop (black)		Appelez-nous	-
17	2303216		Fitting, Water				$ 55.81
