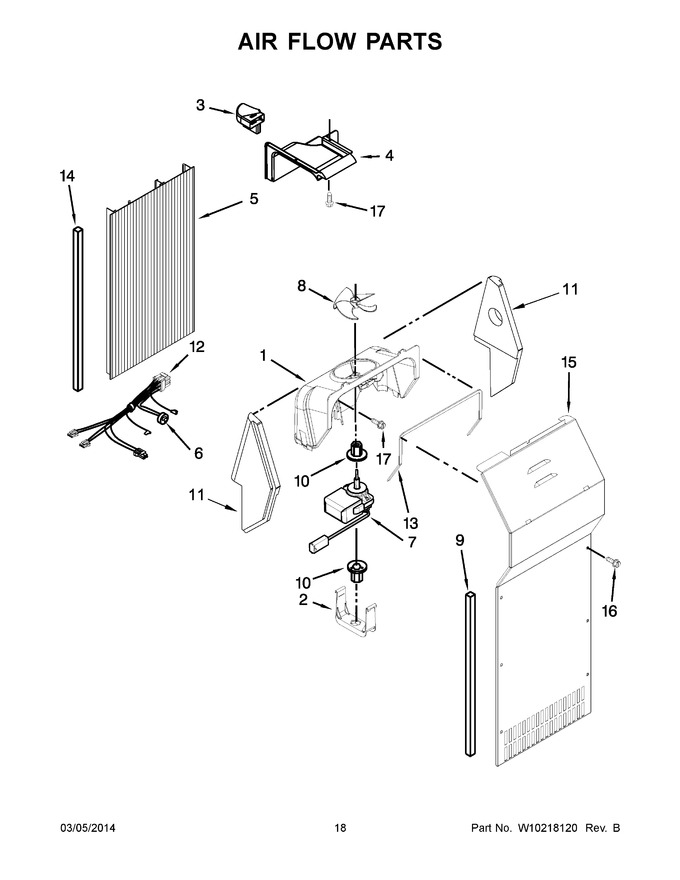

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2182120		Scroll, Fan   (Replaces: 2182120)			Immediately	$ 117.57
2	8201663		Retainer, Fan Motor   (Replaces: 2223733)				$ 159.27
3	2223298		Scoop, Air		Appelez-nous	-
4	2223303		Duct, Upper				$ 102.31
5	2223771		Duct, Freezer Compartment Air		Appelez-nous	-
6	WPW10225581		Bi-metal, Defrost   (Replaces: 2321799)			Immediately	$ 50.77
7	2259385		Motor, Evaporator				$ 84.74
8	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 43.41
9	WP2304241		Gasket   (Replaces: 2304241)			Immediately	$ 86.94
10	W11669856		Grommet   (Replaces: 2223986)			Immediately	$ 15.93
11	2223395		Support, Fan Scroll (right Hand)		Appelez-nous	-
11	4388358		Support, Fan Scroll (left Hand)   (Replaces: 2203596)				$ 32.72
12	W10129813		Harness, Evaporator Fan		Appelez-nous	-
13	WP2155789		Gasket   (Replaces: 2155789)				$ 8.18
14	4388500		Gasket   (Replaces: 2203876)				$ 94.91
15	2223413		Cover, Evaporator (includes Item No.9)		Appelez-nous	-
16	4389654		Screw   (Replaces: 8281159)				$ 14.58
17	WP489478		Screw   (Replaces: 489478)				$ 8.18
