SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)

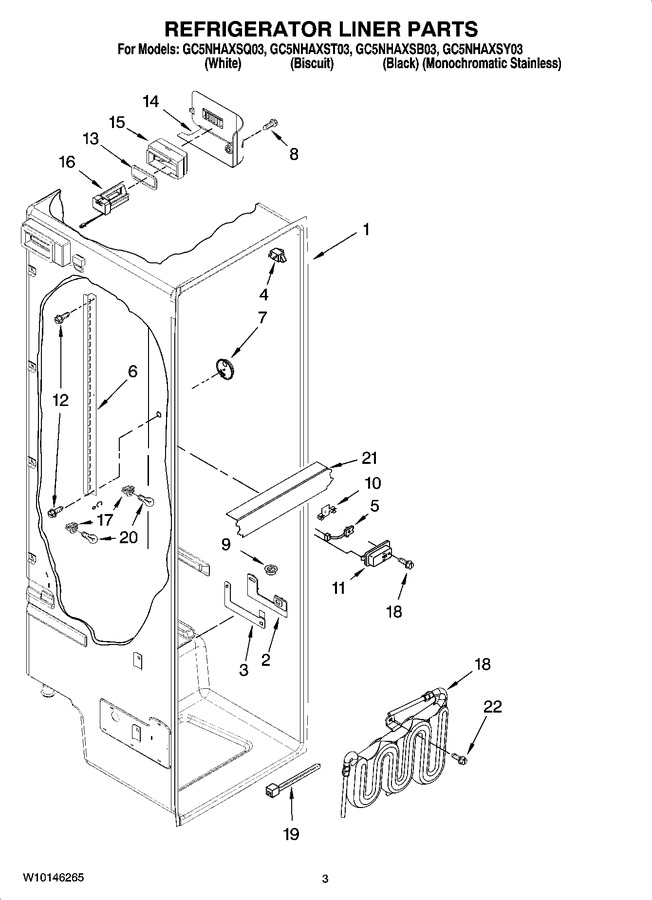

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2223524		Escutcheon, Meat Pan Control		Appelez-nous	-
3	2223339		Slide Meat Pan Control		Appelez-nous	-
4	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 37.23
5	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
6	2223456		Ladder, Shelf (2)		Appelez-nous	-
7	2261601		Housing, Door Control				$ 50.22
8	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
9	2171846		Release Valve				$ 18.99
10	2209204		Clip, Thermistor		Appelez-nous	-
11	1116793		Cover, Thermistor				$ 14.63
12	WP489478		Screw   (Replaces: 489478)				$ 7.75
13	2304597		Gasket, Air Baffle				$ 103.97
14	2223403		Cover, Air Baffle				$ 72.16
15	2224076		Air Diffuser Assembly				$ 43.38
16	WP2220377		Air Baffle   (Replaces: 2220377)			Immediately	$ 362.90
17	4387478		Socket   (Replaces: 2162085)			Immediately	$ 110.16
18	WPW10276792		Reservoir   (Replaces: 2307107)				$ 137.57
19	WP2205813		Strap   (Replaces: 2307062)				$ 7.72
20	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
21	2223663		Light Lens				$ 107.10
22	488280		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
