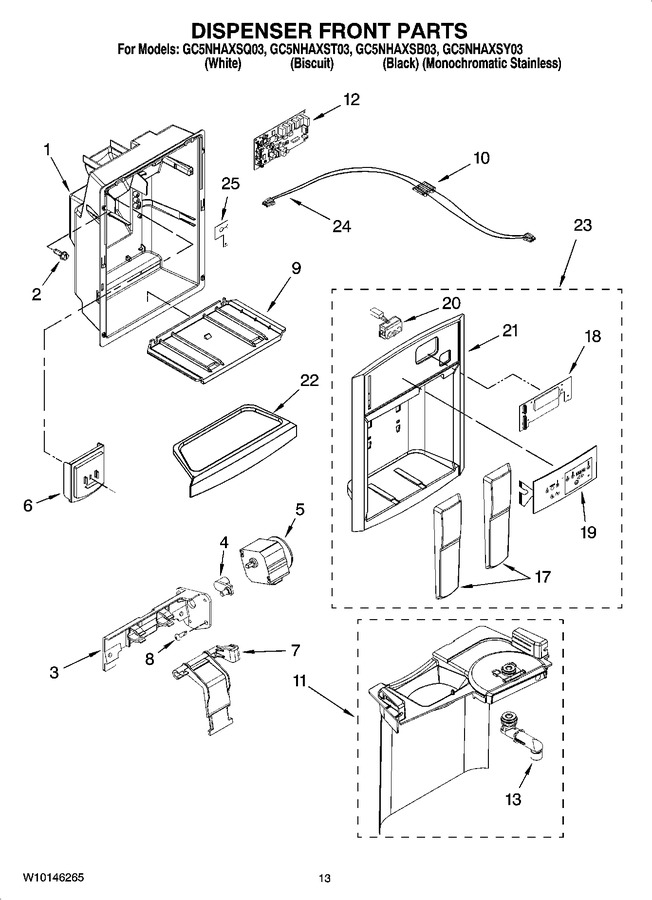

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP939101		Screw (4)   (Replaces: 939101)				$ 7.50
3	WP2305202		Bracket, Motor   (Replaces: 2305202)				$ 96.76
4	WP2305242		Connector, Door Bracket   (Replaces: 2305242)			Immediately	$ 96.97
5	WPW10184813		Motor, Ice Door   (Replaces: 2305262)			Immediately	$ 103.17
6	WP2305258		Door, Ice   (Replaces: 2305258)				$ 24.85
7	WP2305204		Support, Ice Door   (Replaces: 2305204)				$ 88.22
8	WP4449745		Screw (2)   (Replaces: 4449745)				$ 7.49
9	2305413AP		Grille, Slide (apollo Gray)		Appelez-nous	-
9	2305413W		Grille, Slide (white)		Appelez-nous	-
9	2305413T		Grille, Slide (biscuit)		Appelez-nous	-
9	2305413B		Grille, Slide (black)		Appelez-nous	-
10	2308165		Ferrite Bead		Appelez-nous	-
11	2305460B		Separator Assembly (black)		Appelez-nous	-
11	2305460US		Separator Assembly (universal Silver)		Appelez-nous	-
11	2305460W		Separator Assembly (white)		Appelez-nous	-
11	2305460T		Separator Assembly (biscuit)		Appelez-nous	-
12	WP2303843		Electronic Control (core)   (Replaces: 2303843)				$ 347.99
13	WP2305235		Spigot   (Replaces: 2305235)				$ 140.07
17	2305247CG		Pad, Ice & Water (for White Model)		Appelez-nous	-
17	2305247WL		Pad, Ice & Water (for Biscuit Model)		Appelez-nous	-
17	2305247GM		Pad, Ice & Water (for Black Model)		Appelez-nous	-
17	2305247MG		Pad, Ice & Water (for Monochromatic Stainless Model)		Appelez-nous	-
18	2304170		Cover, Electronic Control		Appelez-nous	-
20	2317205		Led Assembly		Appelez-nous	-
22	2305408T		Tray, Housing (biscuit)		Appelez-nous	-
22	2305408B		Tray, Housing (black)		Appelez-nous	-
22	2305408US		Tray, Housing (universal Silver)		Appelez-nous	-
22	2305408W		Tray, Housing (white)		Appelez-nous	-
23	2317715T		Front Cover Assembly (includes Items 17, 18, 19, 20 & 21) (biscuit)		Appelez-nous	-
23	2317715B		Front Cover Assembly (includes Items 17, 18, 19, 20 & 21) (black)		Appelez-nous	-
23	2317715US		Front Cover Assembly (includes Items 17, 18, 19, 20 & 21) (universal Silver)		Appelez-nous	-
23	2317715W		Front Cover Assembly (includes Items 17, 18, 19, 20 & 21) (white)		Appelez-nous	-
24	2187814		Wire Assembly, User Interface (includes 10)				$ 35.21
25	2305447		Clip, Wiring		Appelez-nous	-
