SELECT A DIAGRAM
New Model Search:

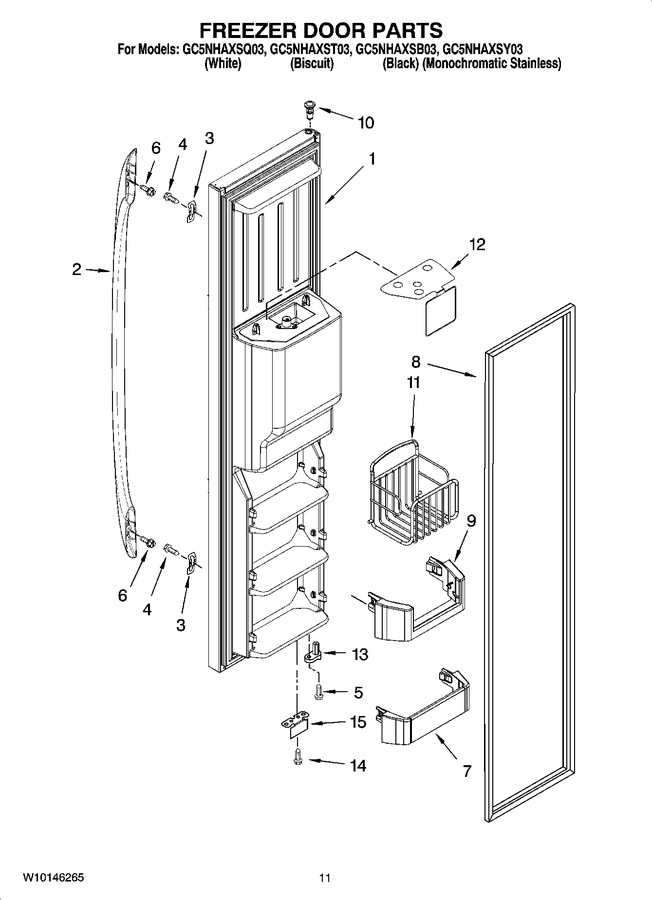

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10130224 | Freezer Door (includes 8 And Dispenser Front Parts) (white) |
|
- | |||||
| 1 | W10130228 | Freezer Door (includes 8 And Dispenser Front Parts) (biscuit) |
|
- | |||||
| 1 | W10130226 | Freezer Door (includes 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1 | 2305481SAP | Freezer Door (includes 8 And Dispenser Front Parts) (monochromatic Stainless) |
|
- | |||||
| 2 | 2313351T | Handle (includes 6) (biscuit) |
|
- | |||||
| 2 | 2313351W | Handle (includes 6) (white) |
|
- | |||||
| 2 | 2313351US | Handle (includes 6) (universal Silver) |
|
- | |||||
| 2 | 2313351B | Handle (includes 6) (black) |
|
$ 121.83 | |||||
| 3 | WP2255411 | Clip, Mounting (Replaces: 2255411) |
|
$ 34.81 | |||||
| 4 | WP489491 | Screw (Replaces: 489491) |
|
$ 6.95 | |||||
| 5 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 6 | 8533920 | Screw |
|
$ 5.27 | |||||
| 7 | WP2171157 | Shelf Bin (Replaces: 2171157K) |
|
$ 60.67 | |||||
| 8 | 2326340 | Door Gasket, Magnetic (apollo Grey) |
|
- | |||||
| 8 | 2306995 | Door Gasket, Magnetic (black) (Replaces: 2223910) |
|
$ 315.49 | |||||
| 8 | 2223325 | Door Gasket, Magnetic (mist Beige) |
|
- | |||||
| 9 | 2223334 | Trivet, Tilt-out (2) |
|
$ 25.46 | |||||
| 10 | 2308050 | Thimble, Top |
|
- | |||||
| 11 | 2304309 | Basket, Tilt-out (2) |
|
$ 77.01 | |||||
| 12 | 2304895 | Safety Barrier |
|
- | |||||
| 13 | 2307050 | Door Closer, Upper Cam |
|
$ 39.47 | |||||
| 14 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 15 | 2310226 | Bracket, Door Stop Following Parts Not Illustrated (wire Assembly, Freezer Door) |
|
- | |||||
| 15 | 2306940 | Bracket, Door Stop (chrome) |
|
$ 97.08 | |||||
| 15 | 2306940B | Bracket, Door Stop (black) |
|
$ 37.11 | |||||
| 15 | 2317708 | Bracket, Door Stop Following Parts Not Illustrated (tube, Door) |
|
$ 35.58 |
