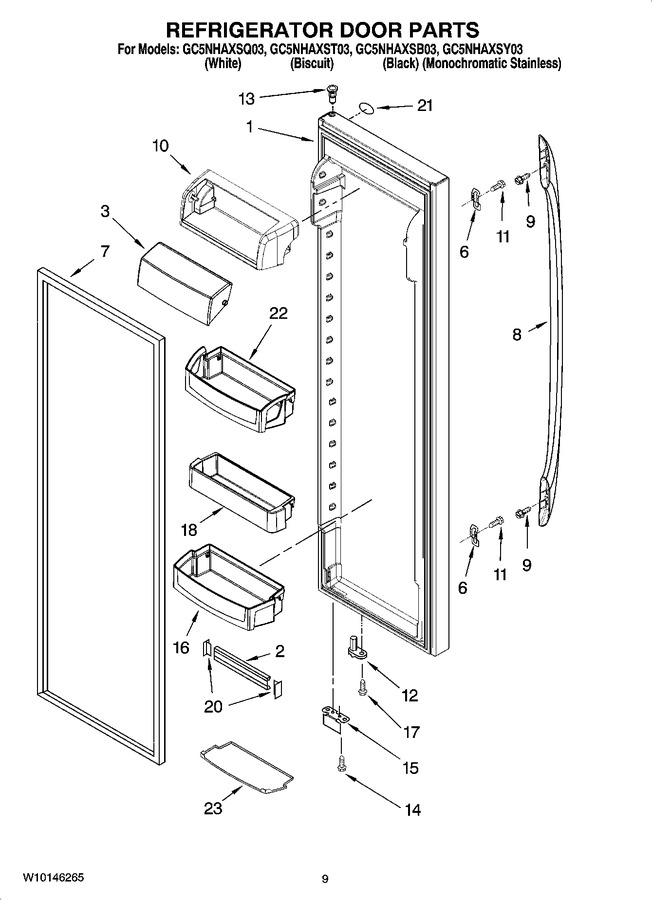

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2322200SAP | Refrigerator Door (includes 7) (monochromatic Stainless) |
|
- | |||||
| 1 | W10128356 | Refrigerator Door (includes 7) (biscuit) |
|
- | |||||
| 1 | W10128354 | Refrigerator Door (includes 7) (black) |
|
- | |||||
| 1 | W10128352 | Refrigerator Door (includes 7) (white) |
|
- | |||||
| 2 | 2203087K | Trim, Shelf |
|
- | |||||
| 3 | 2255421 | Dairy Door |
|
$ 34.76 | |||||
| 6 | WP2255411 | Clip, Mounting (Replaces: 2255411) |
|
$ 34.81 | |||||
| 7 | 2326341 | Door Gasket, Magnetic (apollo Grey) |
|
- | |||||
| 7 | 2306996 | Door Gasket, Magnetic (black) (Replaces: 2223909) |
|
$ 319.14 | |||||
| 7 | 2223326 | Door Gasket, Magnetic (mist Beige) |
|
- | |||||
| 8 | 2313351B | Handle (includes 9) (black) |
|
$ 121.83 | |||||
| 8 | 2313351US | Handle (includes 9) (universal Silver) |
|
- | |||||
| 8 | 2313351T | Handle (includes 9) (biscuit) |
|
- | |||||
| 8 | 2313351W | Handle (includes 9) (white) |
|
- | |||||
| 9 | 8533920 | Screw |
|
$ 5.27 | |||||
| 10 | 2223879 | Dairy Compartment |
|
$ 40.49 | |||||
| 11 | WP489491 | Screw (Replaces: 489491) |
|
$ 6.95 | |||||
| 12 | 2307048 | Door Closer, Upper Cam |
|
- | |||||
| 13 | 2308050 | Thimble, Top |
|
- | |||||
| 14 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 15 | 2306940B | Bracket, Door Stop (black) |
|
$ 37.11 | |||||
| 15 | 2306940 | Bracket, Door Stop (chrome) |
|
$ 97.08 | |||||
| 16 | 2223239K | Door Bin (2) |
|
- | |||||
| 17 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 18 | WP2224173 | Door Bin, Shallow (Replaces: 2224173) |
|
$ 87.32 | |||||
| 20 | WP2156006 | Plug, Trim (Replaces: 2156006K) |
|
Immediately | $ 12.18 | ||||
| 21 | 2220214 | Nameplate |
|
$ 32.43 | |||||
| 22 | 2223463K | Door Bin |
|
$ 42.36 | |||||
| 23 | 2223464K | Mat (3) |
|
- |
