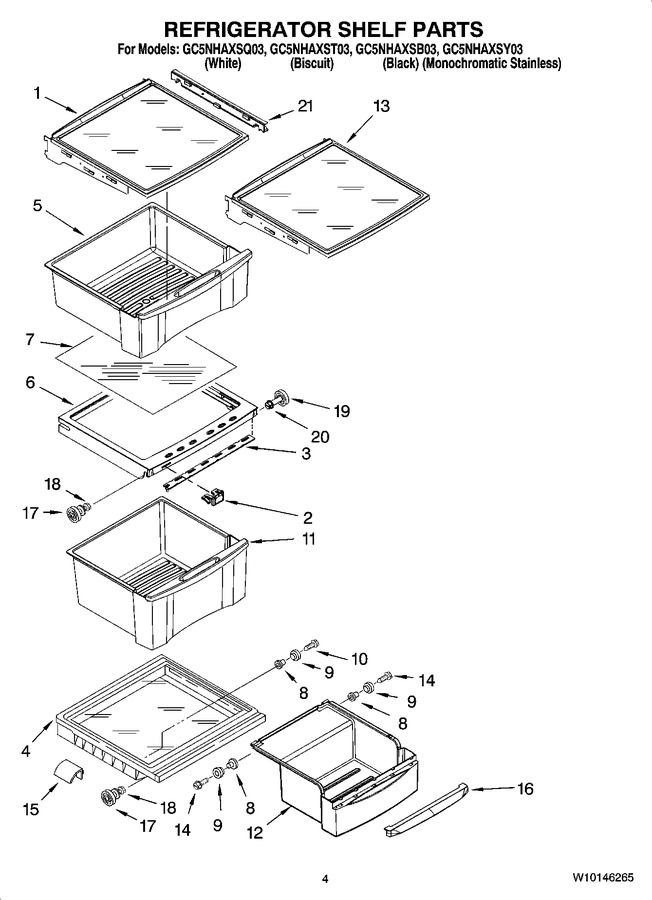

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2223288		Shelf Assembly   (Replaces: 2223288)				$ 397.99
2	2223309		Button, Humidity				$ 34.60
3	2223308		Slide, Humidity				$ 77.01
4	WPW10270150		Cover, Meat Pan (includes Items 8, 9, 10 & 15)   (Replaces: 2203027)				$ 342.45
5	2223261		Snack Pan		Appelez-nous	-
6	2223307		Cover, Crisper (includes 2 & 3)				$ 77.55
7	2223591		Glass, Cover				$ 88.38
8	2174478		Eyelet, Roller				$ 5.70
9	2188212		Roller		Appelez-nous	-
10	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 10.82
11	WPW10233488		Crisper Pan (includes 8, 9 & 10)   (Replaces: 2223235)				$ 192.04
12	2223526		Meat Pan (includes 8, 9, 14 & 16)		Appelez-nous	-
13	W10235943		Shelf And Frame Assembly (3)   (Replaces: 2224059)				$ 336.71
14	WP489261		Screw   (Replaces: 489261)				$ 7.61
15	2223487		Deflector				$ 83.68
16	2203029		Handle				$ 85.47
17	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 14.07
18	WP3-24004-109		Screw   (Replaces: 3400894)				$ 8.05
19	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
20	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
21	WP2223320		Slide, Pan   (Replaces: 2223320)			Immediately	$ 25.05
